1065.10 / 1065.11Modular Patient Bed Head Unit
1065.10 / 1065.11

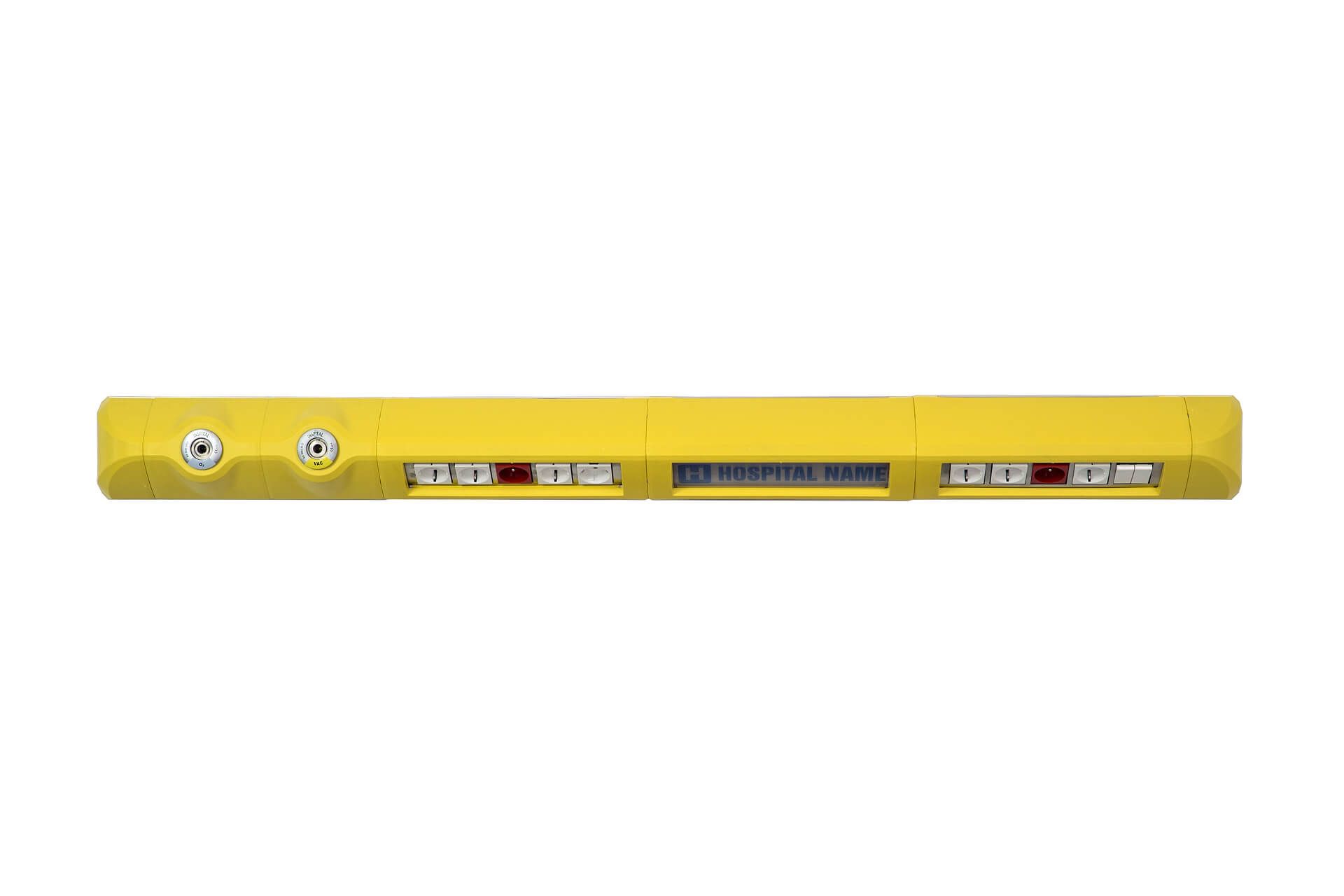

Modular Patient Bed Head Unit

Patient bedhead units are designed to safely and ergonomically provide the medical gas, electrical, and communication infrastructure required during patient treatment and care processes, all within a single system.

General Information

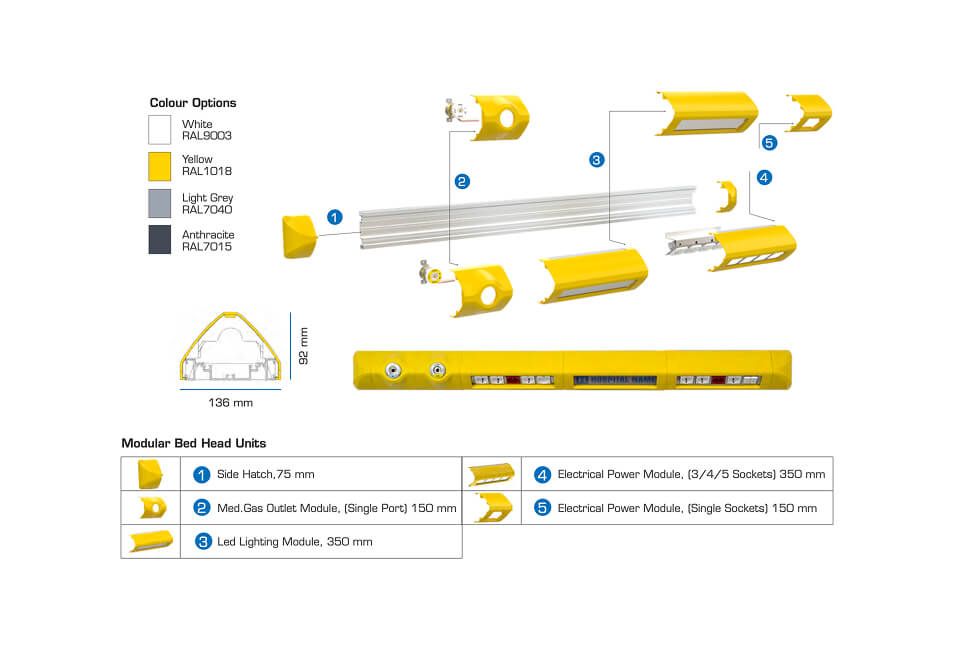

Üzümcü modular patient bedhead units are next-generation products featuring colorful, multi-functional modular components that offer easily customizable solutions. A durable aluminum main frame securely supports all components, and the ABS cover is available in various color options (white, yellow, light gray, and anthracite). There are 5 different modules, which can be arranged to create a customized solution.
All electrical wiring complies with IEE regulations. The units are made of impact-resistant materials and are suitable for cleaning with hospital-grade disinfectants. Each section can be customized according to customer requirements.

With its ergonomic, stylish design and compact structure, it is optimized to take up minimal space.General Information Üzümcü modular patient bedhead units are next-generation products featuring colorful, multi-functional modular components that offer easily customizable solutions. A durable aluminum main frame securely supports all components, and the ABS cover is available in various color options (white, yellow, light gray, and anthracite). There are 5 different modules, which can be arranged to create a customized solution.

All electrical wiring complies with IEE regulations. The units are made of impact-resistant materials and are suitable for cleaning with hospital-grade disinfectants. Each section can be customized according to customer requirements.

With its ergonomic, stylish design and compact structure, it is optimized to take up minimal space.


Technical Specifications

Material  Electrostatically painted extruded aluminum
Color  RAL colors available
Power Input  220V 50Hz
Standard Accessories    3 electrical outlets, 2 lamps
Optional Accessories Medical gas outlets, phone outlet, UPS outlet, data outlet, and nurse call system outlet
Length (1-person)  1500 mm - Model : 1065.10
Length (2-person) 3000 mm - Model : 1065.11
