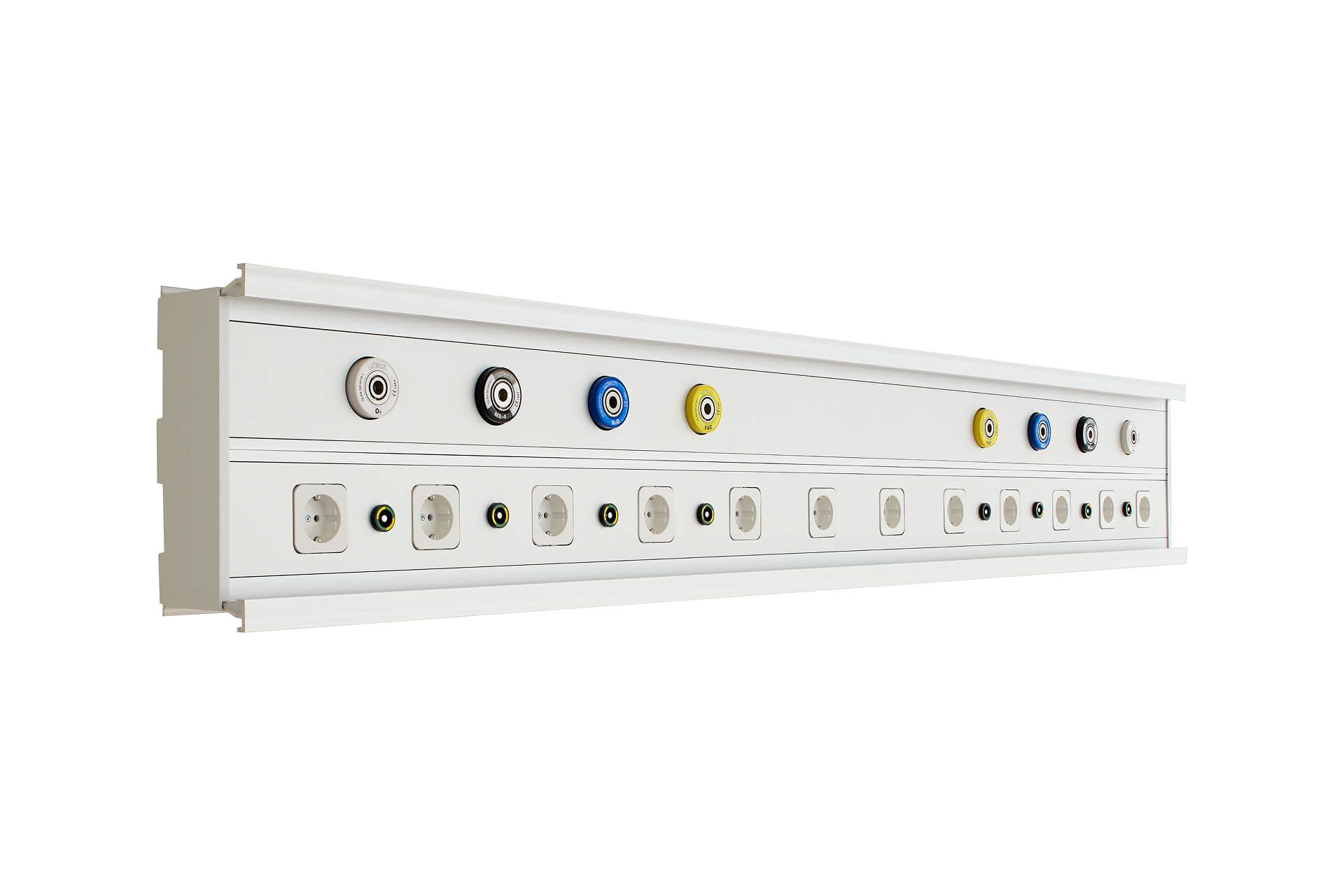

1040.10 / 1040.20Intensive Care Bedhead Unit
1040.10 / 1040.20

Intensive Care Bedhead Unit

Intensive Care Bedhead Units safely integrate medical gas, electrical, and communication infrastructure into a single system to meet the continuous monitoring and treatment needs of critically ill patients.

General Information

Üzümcü Intensive Care Bedhead Units are designed to meet the high technical requirements of intensive care environments, supporting healthcare professionals in providing rapid and effective intervention. Patient safety and operational continuity are prioritized.

All electrical wiring complies with IEE regulations. The units are manufactured from impact-resistant materials and are suitable for cleaning with hospital-grade disinfectants.


Technical Specifications

Material Electrostatically painted extruded aluminum and aluminum rails
Color Anodized
Power Input 220V 50Hz
Standard Accessories 12 electrical outlets, 8 grounding outlets, 2 accessory rails (25x10mm)
Optional Accessories Medical gas outlets, telephone outlet, UPS outlet, data outlet, nurse call system outlet, monitor stand, IV pole, examination lamp
Length (Single-bed) 1500 mm - Model: 1040.10
Length (Double-bed) 3000 mm - Model: 1040.20
Number of Channels 2
Number of Rails 2

Documents

Data Sheet
