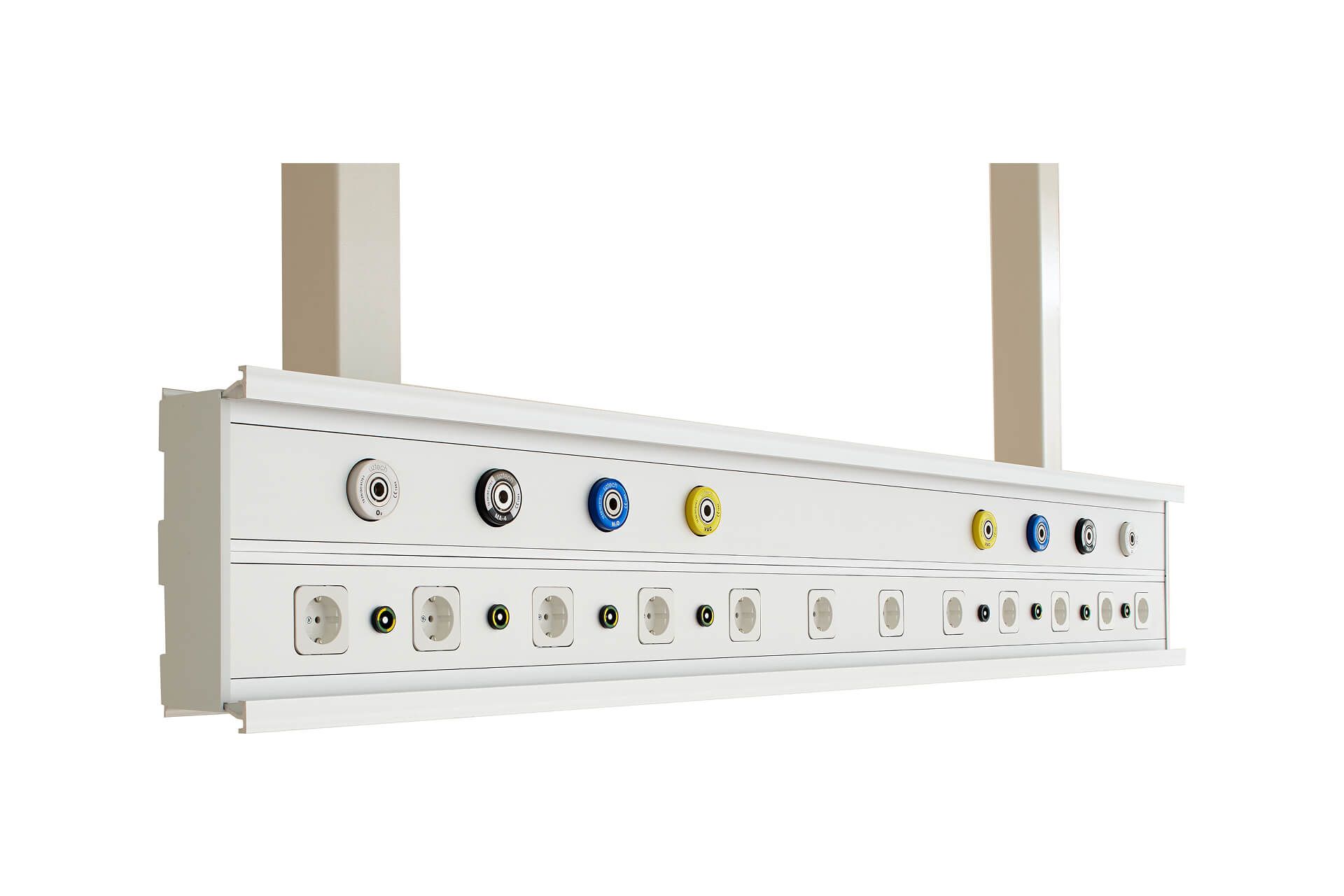

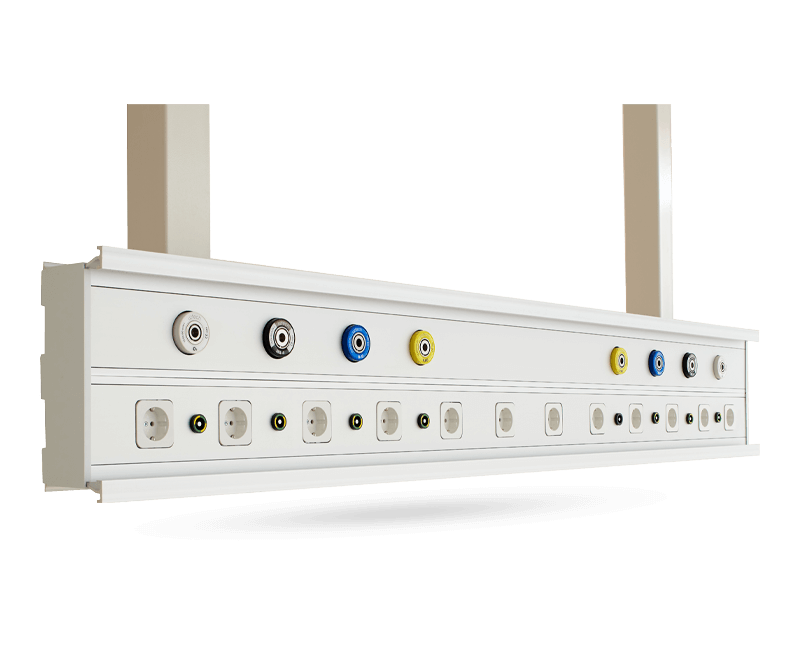

1045.10 / 1045.20Intensive Care Bedhead Unit (Ceiling-Mounted)
1045.10 / 1045.20

Intensive Care Bedhead Unit (Ceiling-Mounted)

Intensive Care Bedhead Units safely integrate medical gas, electrical, and communication infrastructure into a single system to meet the continuous monitoring and treatment needs of critically ill patients.

General Information

Üzümcü ceiling-mounted intensive care patient bedhead units optimize space utilization in intensive care areas, creating a more organized and accessible patient environment. By delivering medical gas, electrical, and data connections from the ceiling, they reduce the density of cables and hoses on the floor and walls, ensuring a safe, hygienic, and controlled working environment. This design supports healthcare professionals’ quick access to equipment while enhancing ergonomics and operational efficiency in intensive care processes.

All electrical wiring complies with IEE regulations. The units are manufactured from impact-resistant materials and are suitable for cleaning with hospital-grade disinfectants.


Technical Specifications

Material Electrostatically painted extruded aluminum and aluminum rails
Color Anodized
Power Input 220V 50Hz
Standard Accessories 12 electrical outlets, 8 grounding outlets, 2 accessory rails (25x10mm)
Optional Accessories Medical gas outlets, phone outlet, UPS outlet, data outlet, nurse call system outlet, monitor stand, IV pole, examination lamp
Length (1-person) 1500 mm - Model: 1045.10
Length (2-person) 3000 mm - Model: 1045.20
Number of Channels 2
Number of Rails 2
