66.1098Regional Gas Control Units
66.1098

Regional Gas Control Units

General Information

The Üzümcü Area Gas Control Unit is a reliable solution designed to manage and isolate medical gas supply in hospital environments. It ensures safe and efficient operation by guaranteeing compliance with international standards such as EN ISO 7396-1 and HTM 02-01. This unit provides uninterrupted supply to critical areas by enabling the isolation of individual floors or zones for installation, maintenance, or emergencies.

A key feature of the unit is its non-interchangeable threaded (NIST) connection, which enables the rapid integration of emergency gas supplies. This feature is vital for maintaining continuous gas flow during interruptions or planned maintenance, ensuring patient safety and operational efficiency.

The Üzümcü Area Gas Control Unit is designed with safety and user comfort in mind. It features durable construction, intuitive controls, and visual indicators for easy use and monitoring. Integrating advanced isolation features with emergency supply readiness, the unit provides resilience and reliability in the management of medical gas systems, making it an indispensable component for modern healthcare facilities.

  • Can control 1-5 gases, including vacuum.

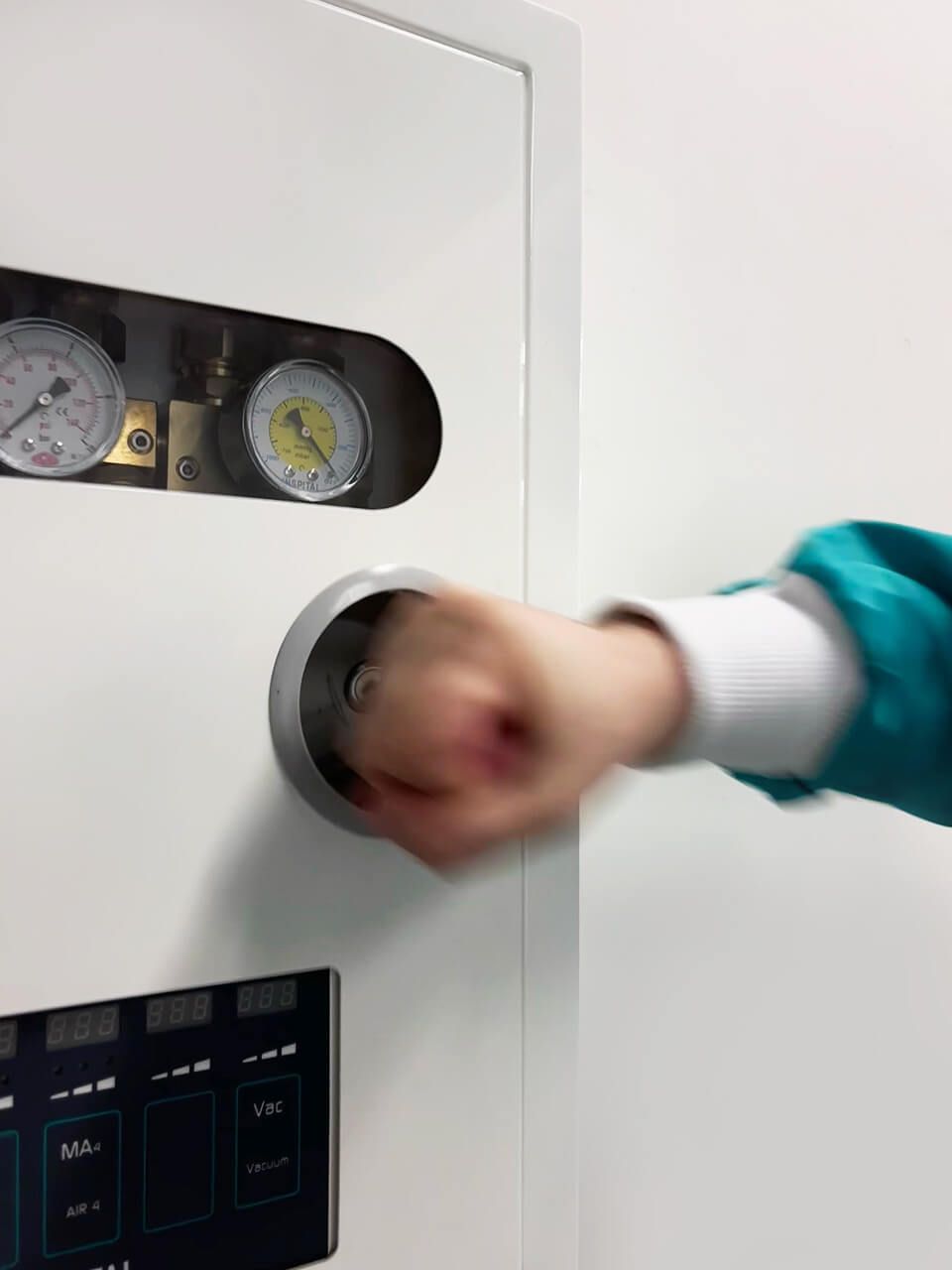

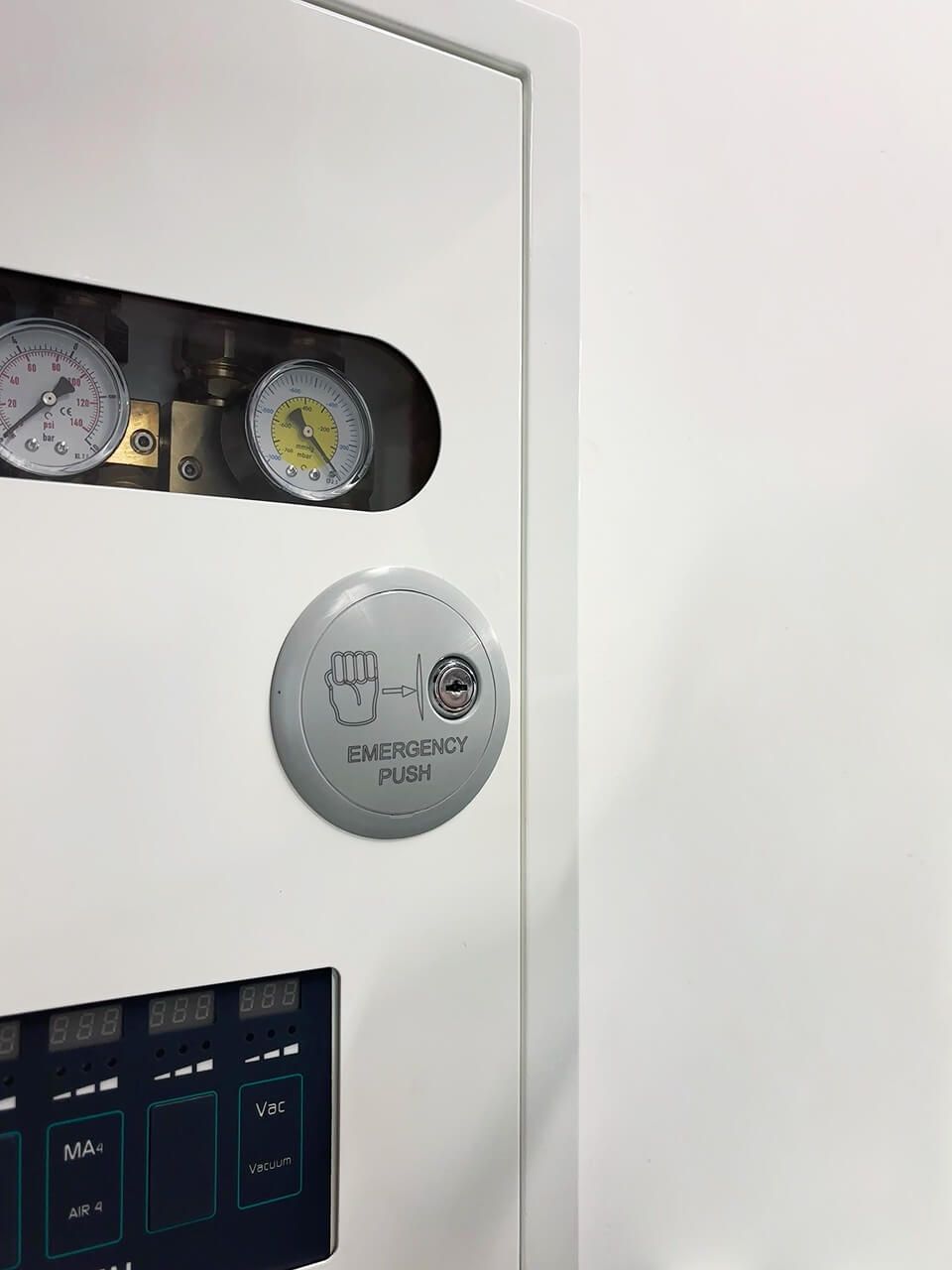

  • Lockable covers with an emergency access lock system are available.

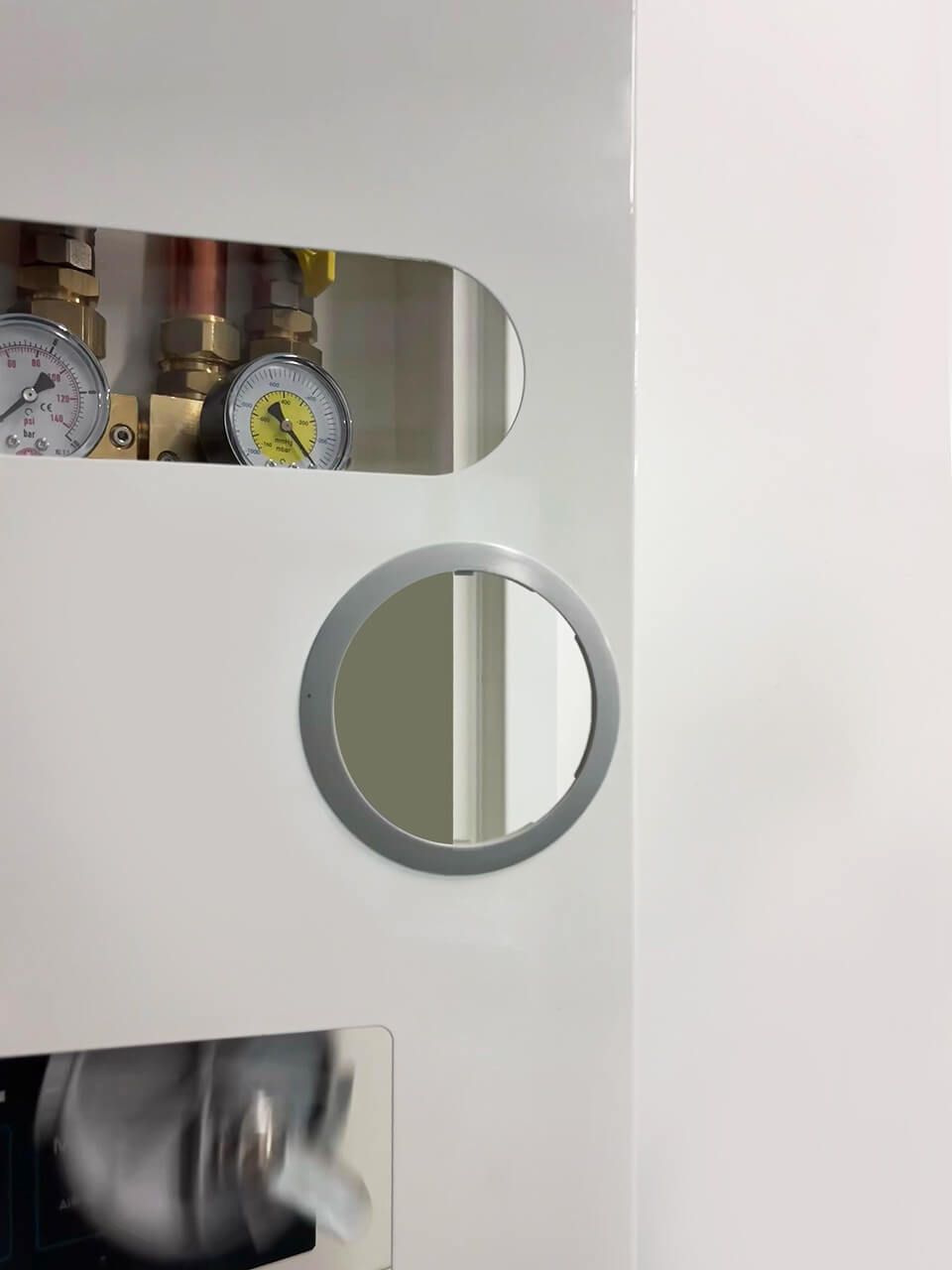

  • The window on the cover allows the user to monitor analog manometers without opening the covers.
  • Both in-wall and surface-mounted types are available.
  • Pressure switches can be installed inside the box to enable local monitoring.

Technical Specifications

  Electrostatic Painted Stainless Steel Size (HxBxW)
Under Plaster Version On Plaster Version Under Plaster Version On Plaster Version
Article Code
1 gas w/o alarm 66.1098 66.1108 66.1098S 66.1108S 520x330x95
1 gas with alarm 66.1103 66.1113 66.1103S 66.1113S
2 gas w/o alarm 66.1508 66.1109 66.1508S 66.1109S
2 gas with alarm 66.1104 66.1114 66.1104S 66.1114S
3 gas w/o alarm 66.1509 66.1110 66.1509S 66.1110S 520x385x95
3 gas with alarm 66.1105 66.1115 66.1105S 66.1115S
4 gas w/o alarm 66.1510 66.1111 66.1510S 66.1111S 520x610x95
4 gas with alarm 66.1106 66.1116 66.1106S 66.1116S
5 gas w/o alarm 66.1511 66.1112 66.1511S 66.1112S
5 gas with alarm 66.1107 66.1117 66.1107S 66.1117S

Documents

Data Sheet
