2200.81Flexible and Rod Pipe
2200.81

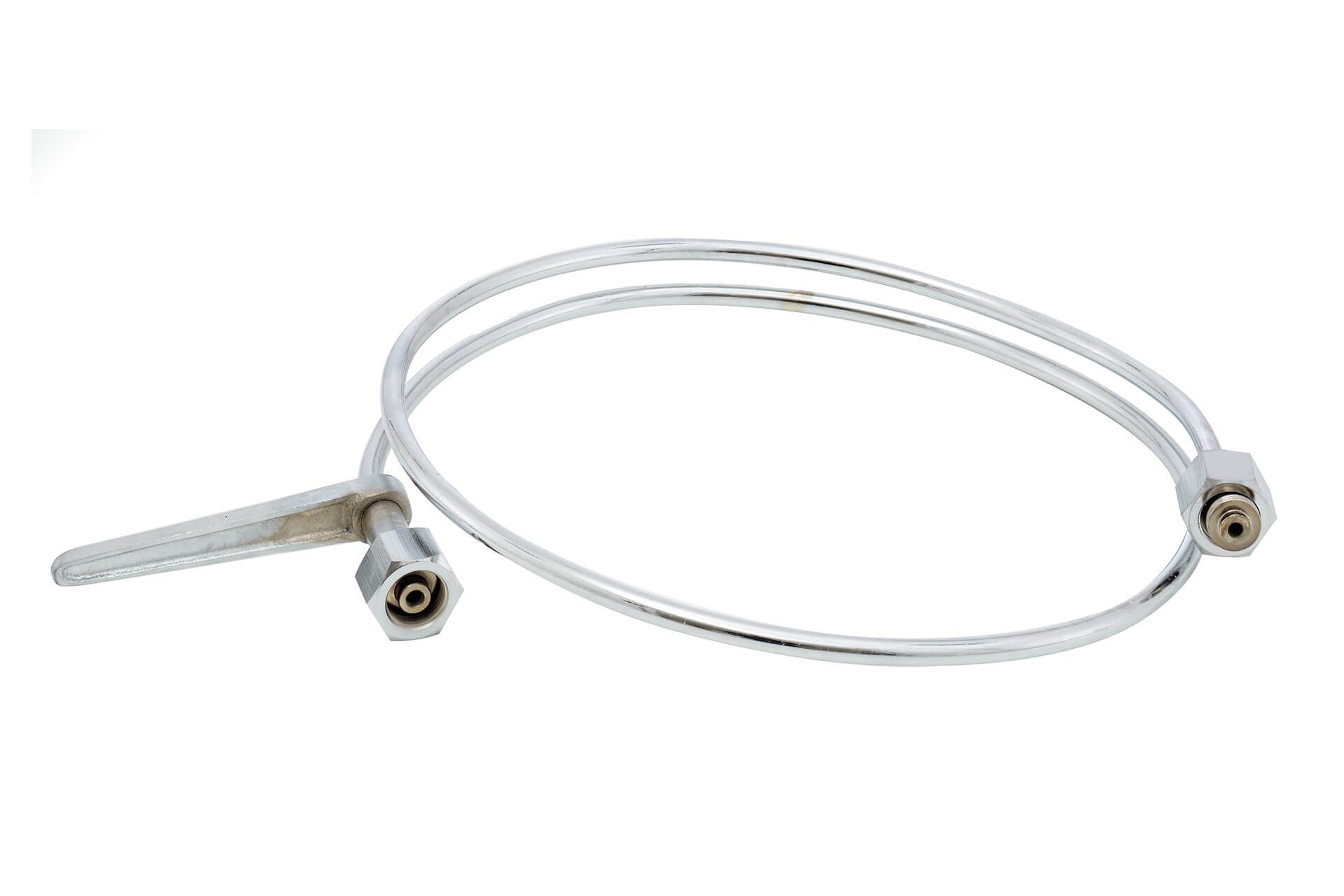

Flexible and Rod Pipe

General Information

It is used to connect cylinders to the cylinder ramp.

Features special connections for O2, N2O, CO2, and medical gas cylinders.


Technical Specifications

Description Gas Type Cylinder nut dia Model Article Code
Tail Pipe 140 cm Oxygen (bull-nose) 5/8 (Male) 2001.01 67.1167
Tail Pipe 140 cm Carbondioxide Ø 21.8 mm, 1/14 2006.00 67.1340
Tail Pipe 140 cm Oxygen 3/4" 2001.00 90.1553
Tail Pipe 140 cm Nitrousoxide 3/8" 2003.00 90.1554
Flexible Hose 60 cm Oxygen (bull-nose) 5/8 (Male) 2001.02 67.1168
Flexible Hose 60 cm Carbondioxide Ø 21.8 mm, 1/14 2001.03 67.1169
Flexible Hose 60 cm Oxygen 3/4" 2001.04 67.1170
Flexible Hose 60 cm Nitrousoxide 3/8" 2001.05 67.1171
Flexible Hose 60 cm Oxygen (PIN INDEX) - 2001.06 67.1172
Flexible Hose 60 cm N2O (PIN INDEX) - 2001.07 67.1173
