1066.10Medical Copper Tubes
1066.10

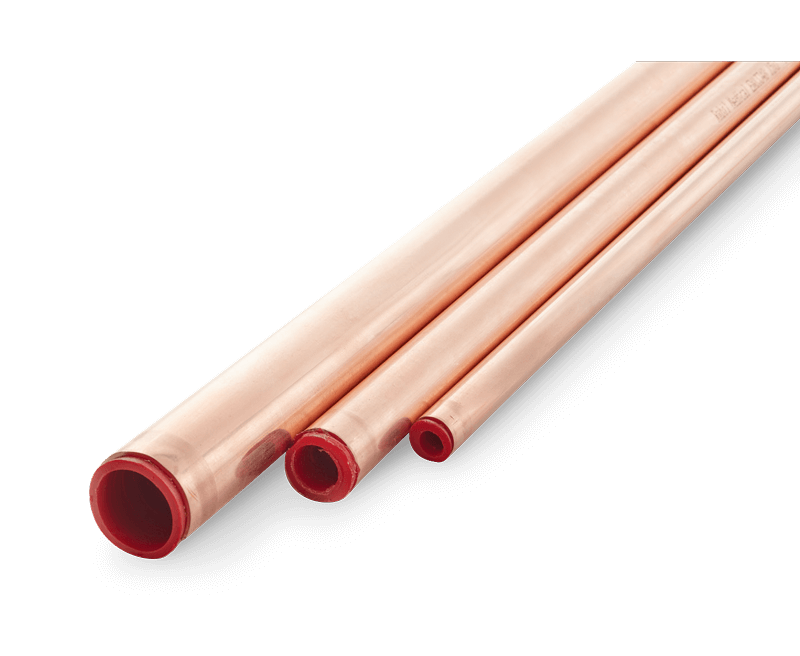

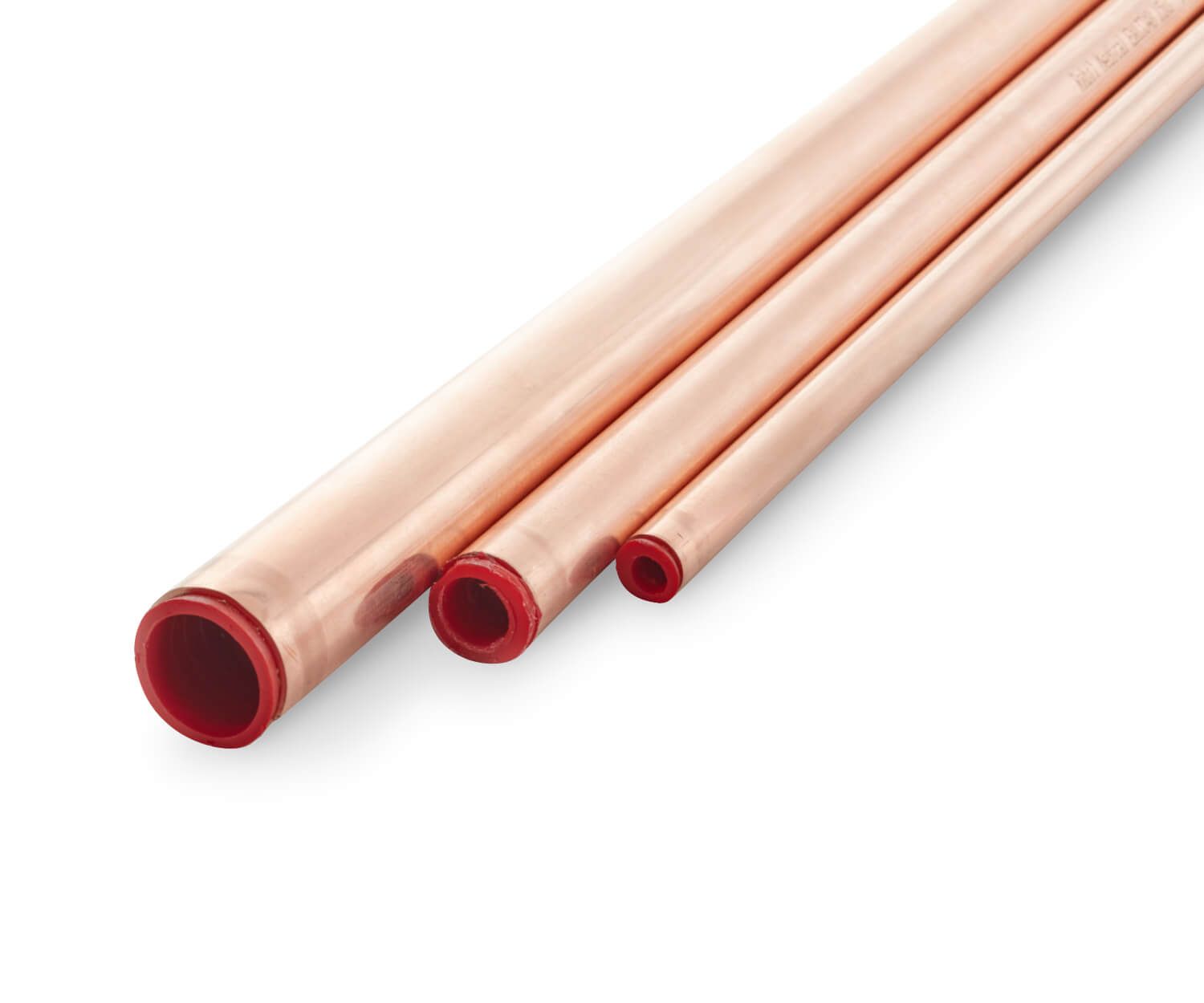

Medical Copper Tubes

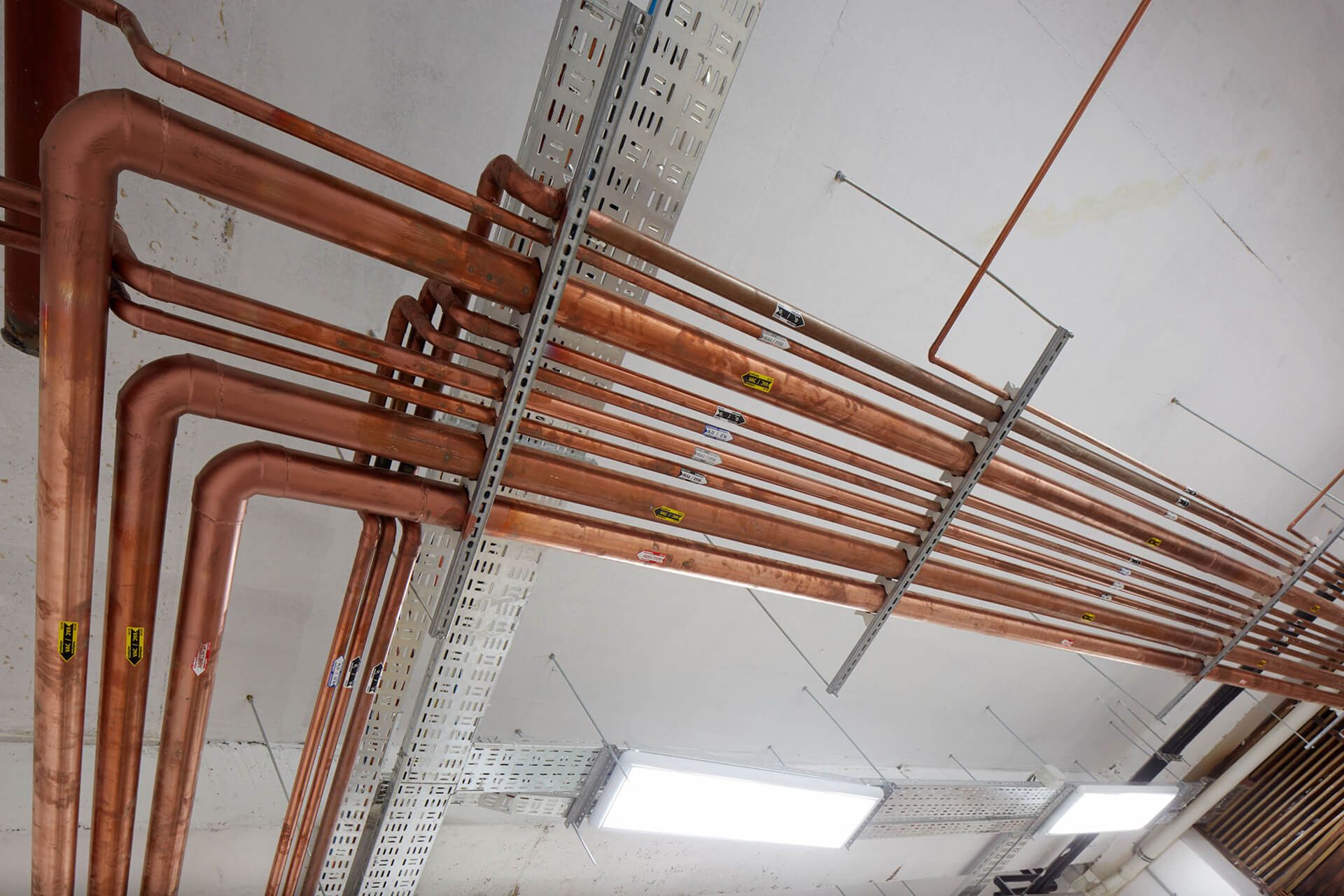

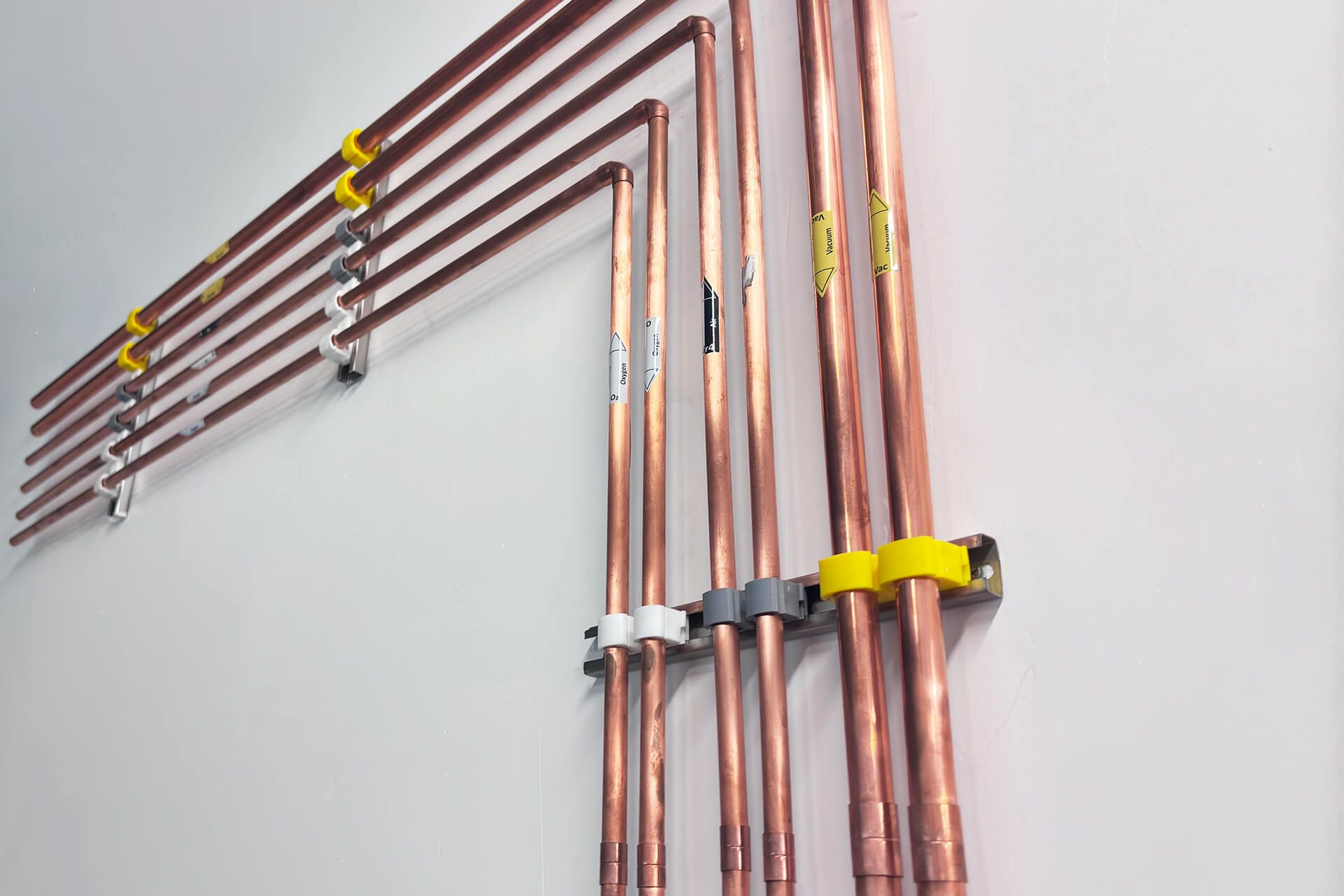

Medical copper tubes are designed to ensure the safe and leak-free transport of medical gases and vacuum systems in hospitals.

General Information

Manufactured from high-purity copper, these tubes ensure the safe and efficient transport of vital medical gases such as oxygen, nitrogen, medical air, and vacuum.

Copper's antimicrobial properties help maintain a hygienic environment by inhibiting bacterial growth. In addition, its excellent corrosion resistance ensures long-lasting and reliable performance.

Medical copper pipes are degreased and marked according to the EN 13348 system requirements of the medical gas.


Technical Specifications

Copper Pipe Diameter  Copper Pipe Diameter
Standard  EN 13348



Model Article Code Diameter Thickness Working Pressure
1066.10 66.1180 10 mm 0,6 mm 84 bar
1066.10 66.1181 10 mm 1,0 mm 84 bar
1066.12 66.1182 12 mm 0,6 mm 77 bar
1066.12 66.1184 12 mm 1,0 mm 77 bar
1076.15 66.1185 15 mm 0,7 mm 63 bar
1006.15 66.1188 15 mm 1,0 mm 63 bar
1006.22 66.1189 22 mm 1,0 mm 58 bar
1006.28 66.1193 28 mm 1,0 mm 51 bar
1156.28 66.1194 28 mm 1,5 mm 51 bar
1006.35 66.1196 35 mm 1,0 mm 40 bar
1156.35 66.1197 35 mm 1,5 mm 40 bar
1006.42 66.1198 42 mm 1,0 mm 42 bar
1156.42 66.1199 42 mm 1,5 mm 42 bar
1156.54 66.1200 54 mm 1,5 mm 27 bar
1206.54 66.1201 54 mm 2,0 mm 27 bar
1156.76 66.1202 76 mm 1,5 mm 29 bar
1206.76 66.1203 76 mm 2,0 mm 29 bar
