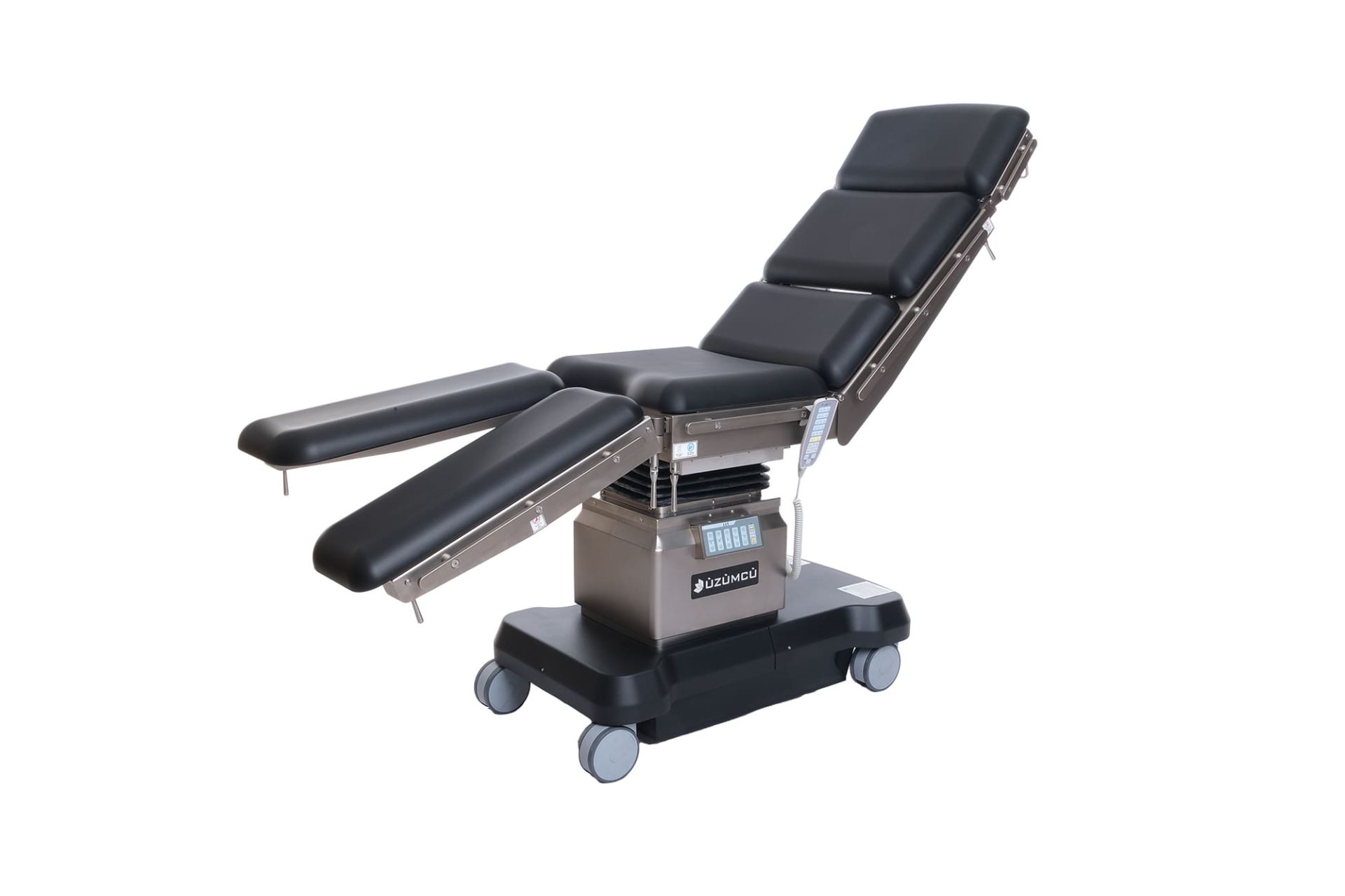

Electro-Mechanical Mobile Operating Table

The Üzümcü OP-2P model electro-mechanical operating table offers an ideal solution for operating rooms with its durability, functionality, and ease of use.

General Information

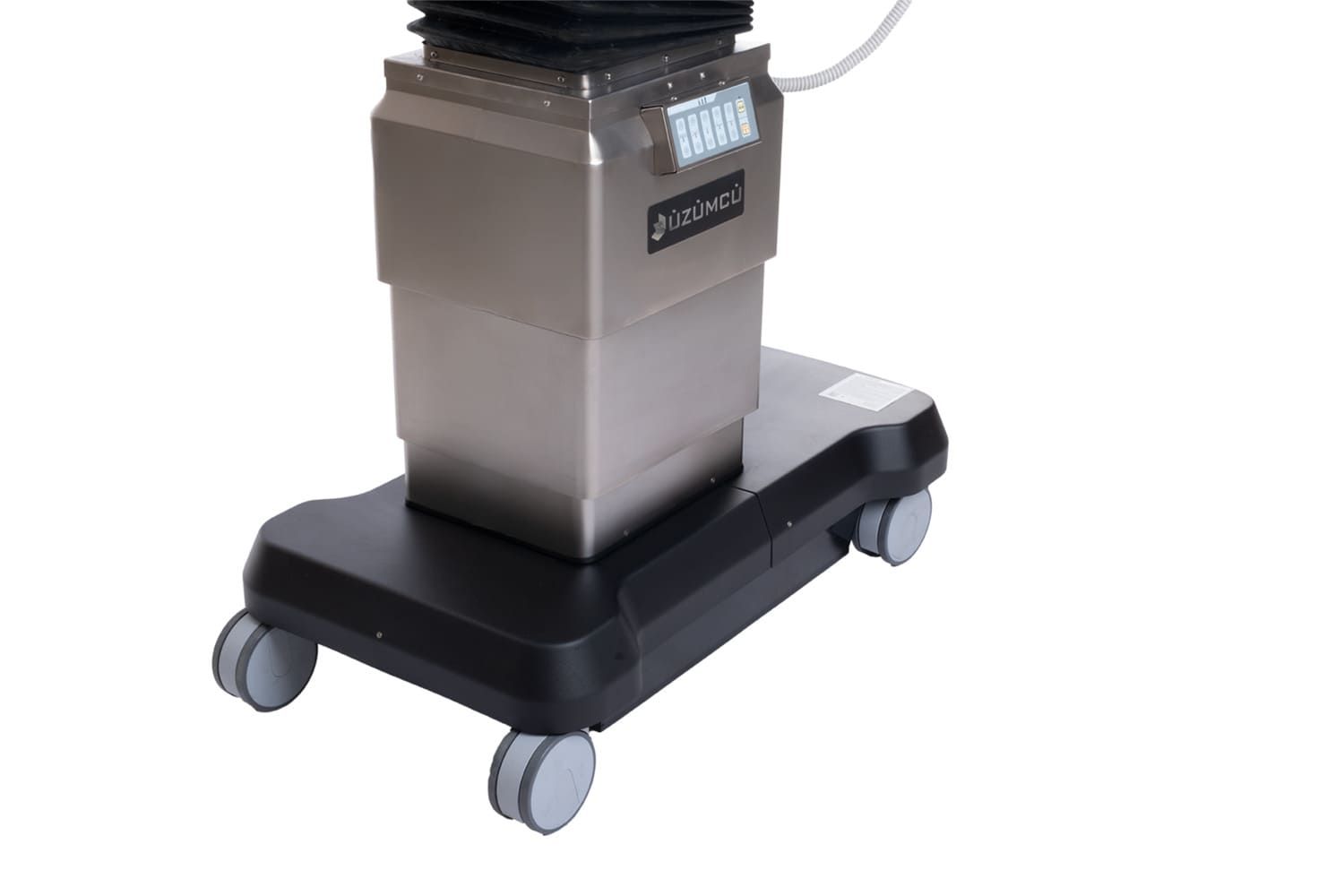

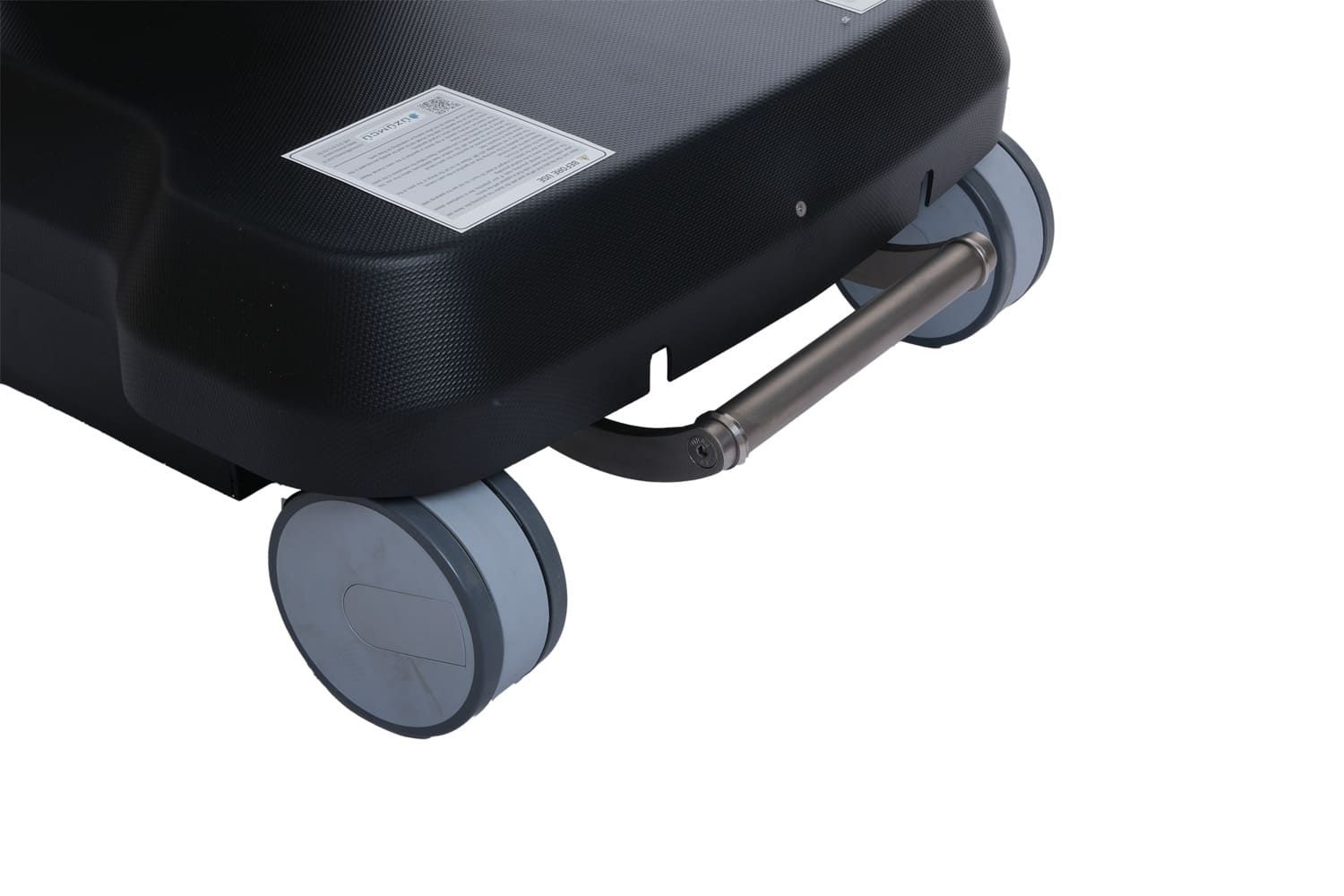

Four 125 mm diameter wheels, specifically designed for the operating table, provide high mobility both inside and outside the operating room. All electro-mechanical movements are controlled safely and easily via wired hand control and body control unit.

Developed with patient safety and comfort in mind, the OP-2P is a powerful operating room solution that reflects Üzümcü's years of engineering and manufacturing experience.General Information

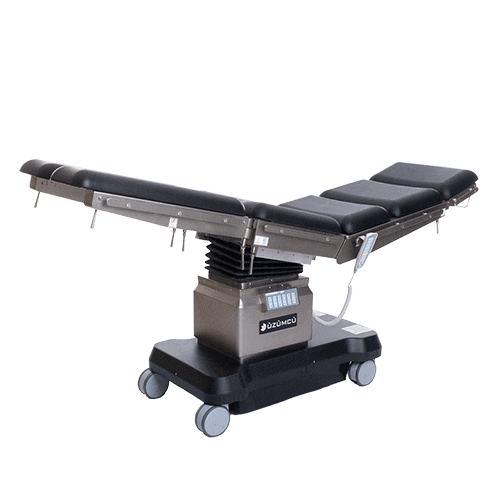

The Üzümcü OP-2P electro-mechanical operating table is a reliable and ergonomic solution designed to meet the needs of modern operating rooms. Its electro-mechanical structure provides precise, quiet, and stable movement during surgical operations. Versatile positioning options, adaptable to different surgical specialties, create a comfortable working environment for surgeons and healthcare personnel.
Four 125 mm diameter wheels, specifically designed for the operating table, provide high mobility both inside and outside the operating room. All electro-mechanical movements are controlled safely and easily via wired hand control and body control unit.

Developed with patient safety and comfort in mind, the OP-2P is a powerful operating room solution that reflects Üzümcü's years of engineering and manufacturing experience.

Key Features

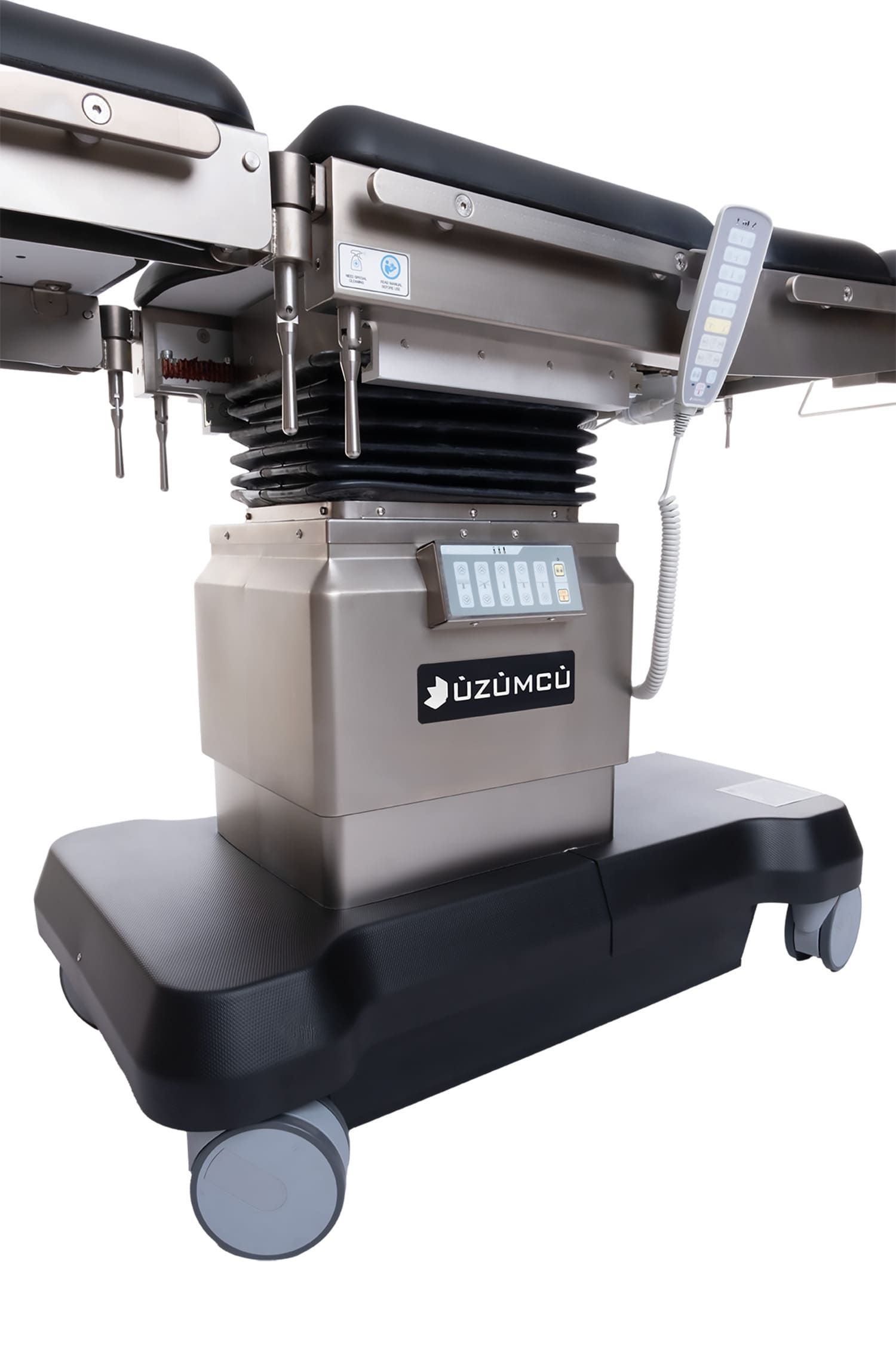

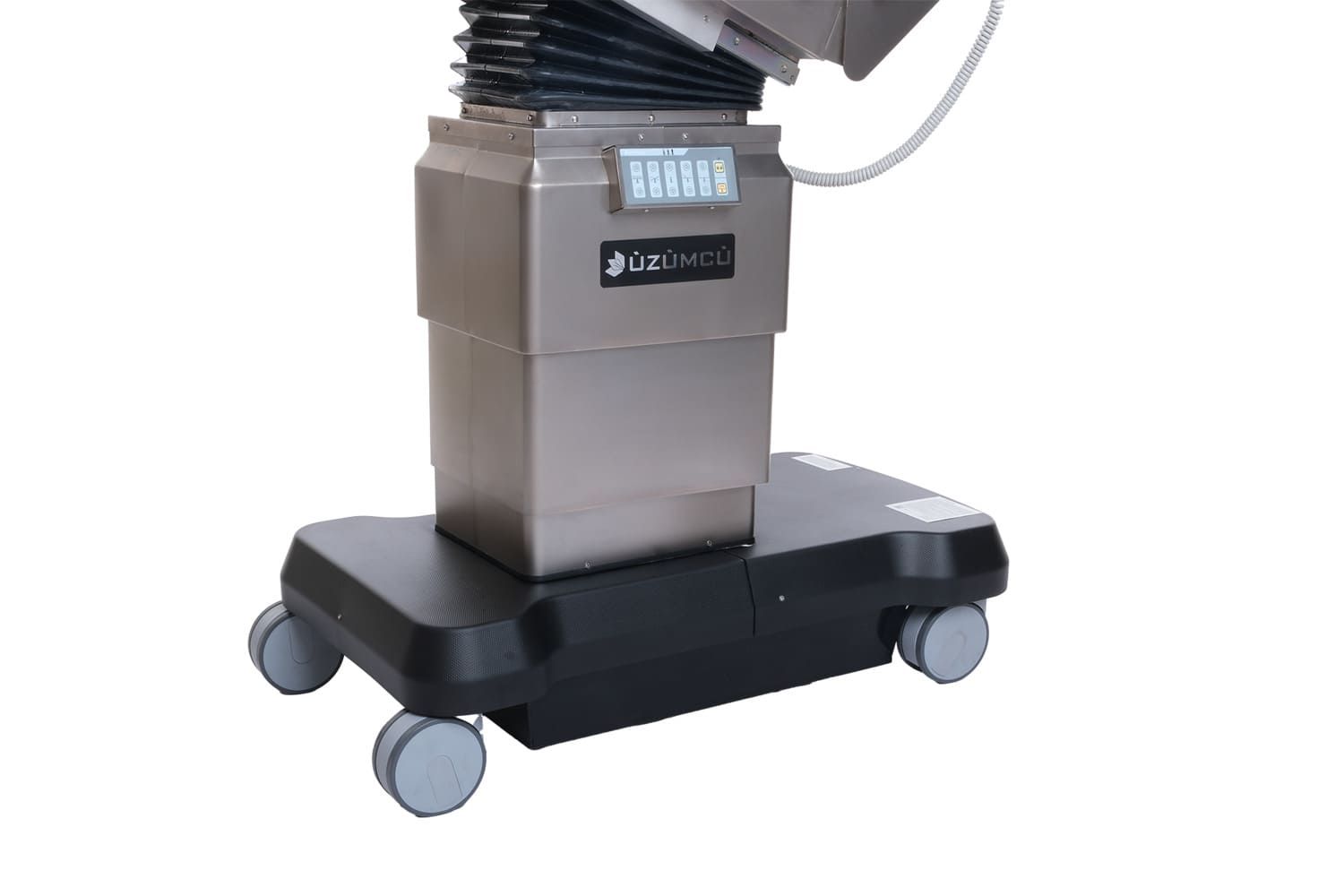

Functional Design Thanks to its modular design, the system adapts to different surgical procedures with high stability, enabling access to the necessary positions for any surgical procedure with a wide range of accessory options. The telescopic body structure offers flexibility for height adjustment at different levels.

Sliding Movement With up to 300 mm of sliding movement in the horizontal plane, access to a wide imaging area is possible while maintaining the sterile field with the fluoroscopy device.

Optimal Space in the Surgical Field The kidney elevator, integrated into the table and adjustable up to 300° (120 mm), provides maximum visibility in the surgical field.

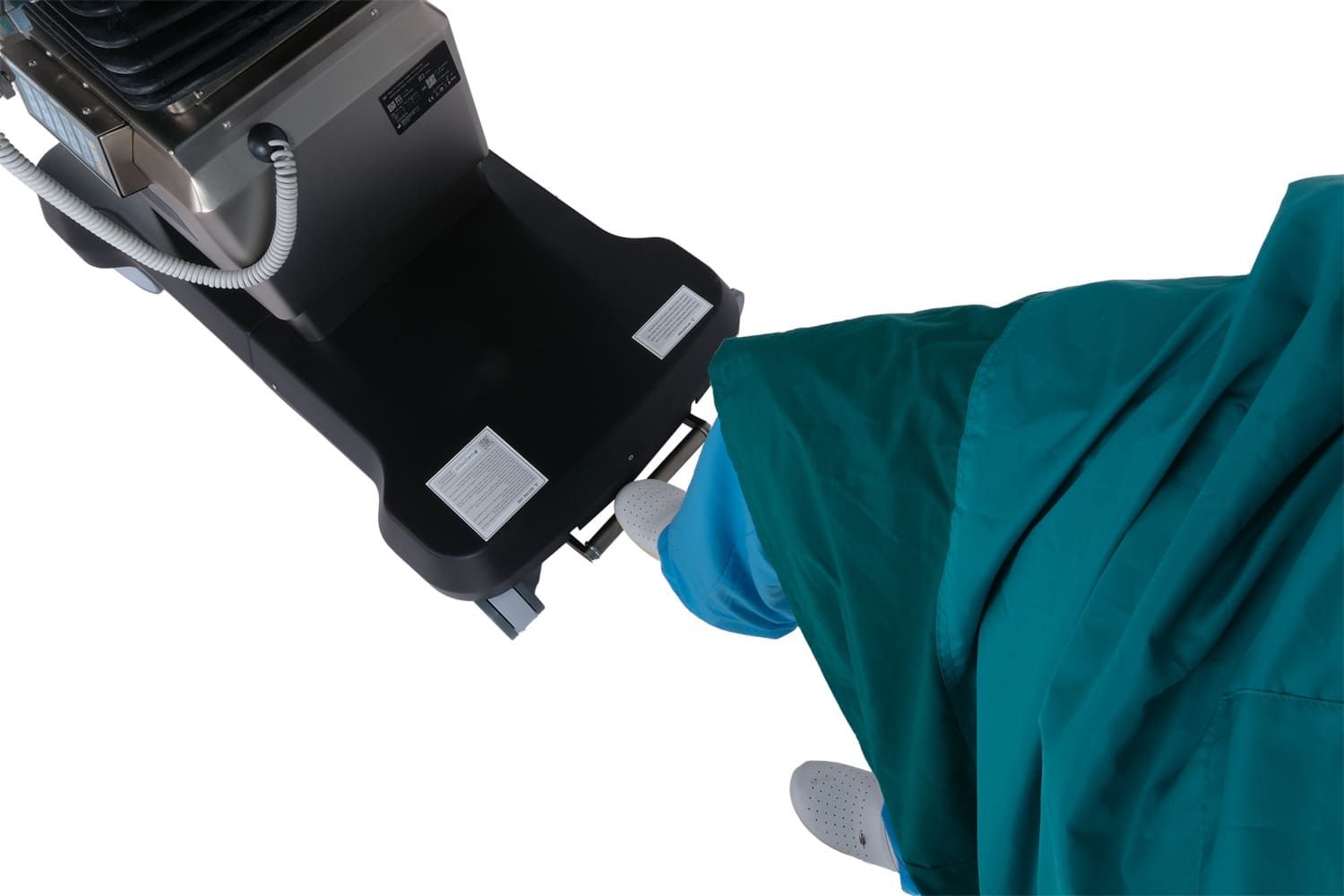

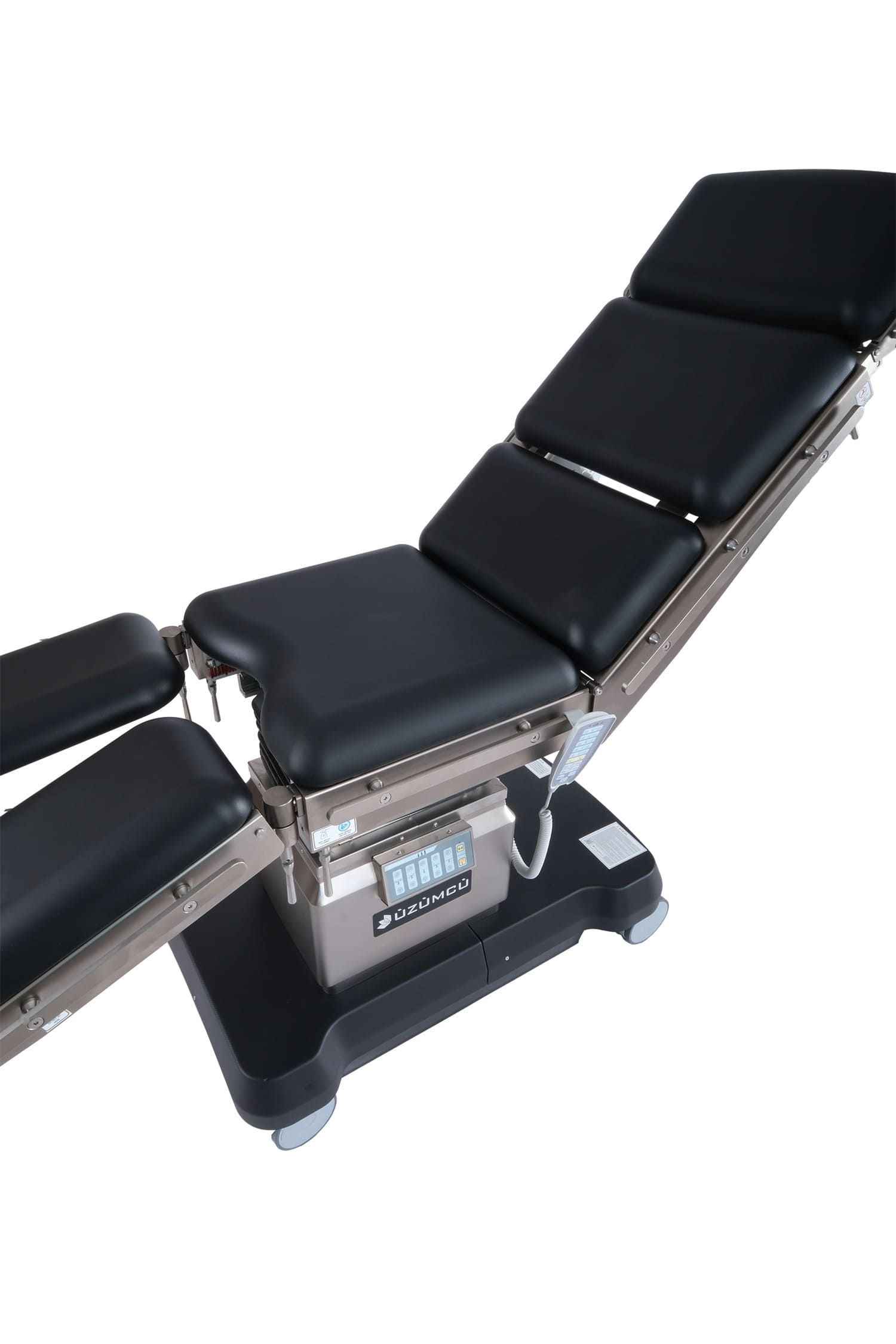

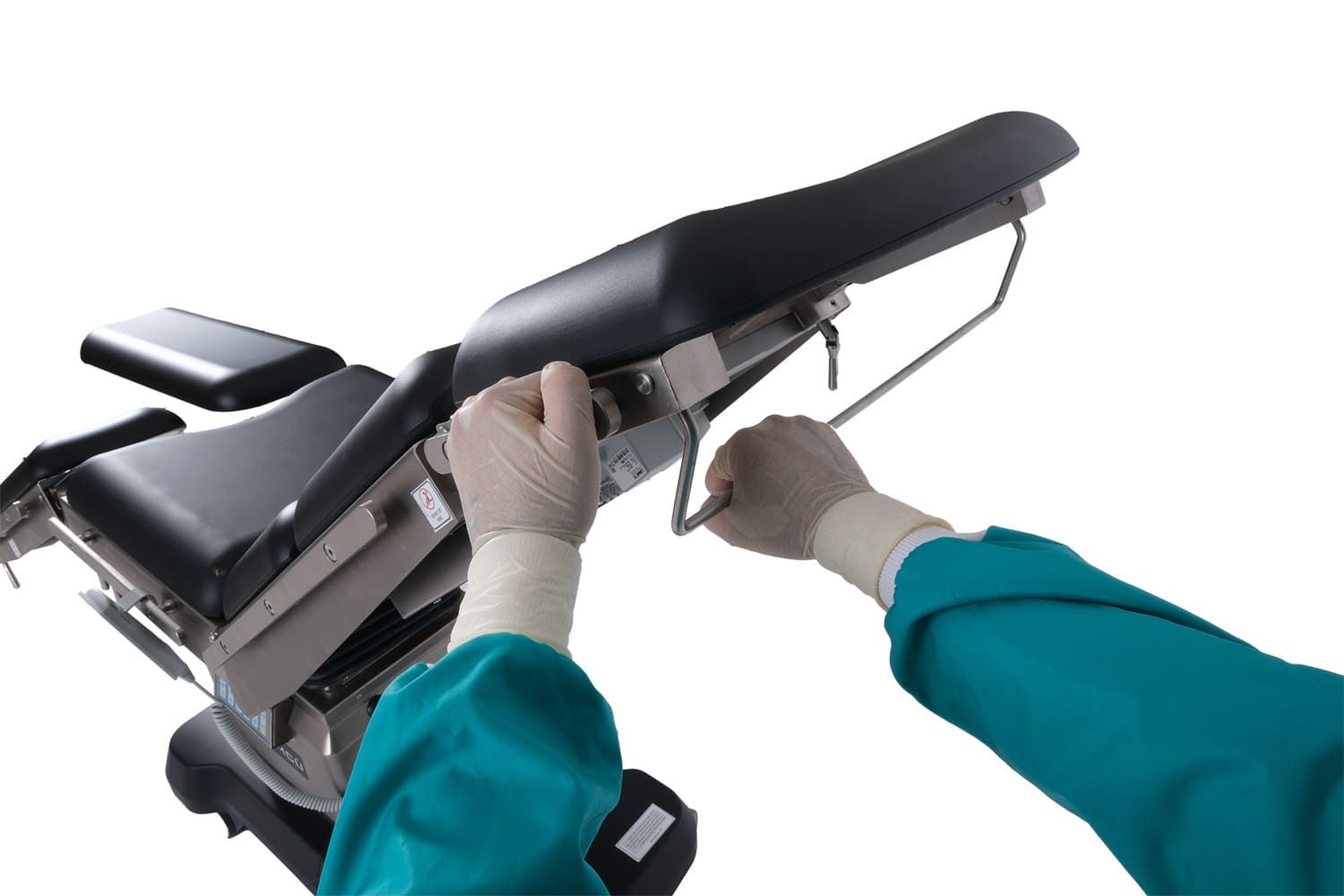

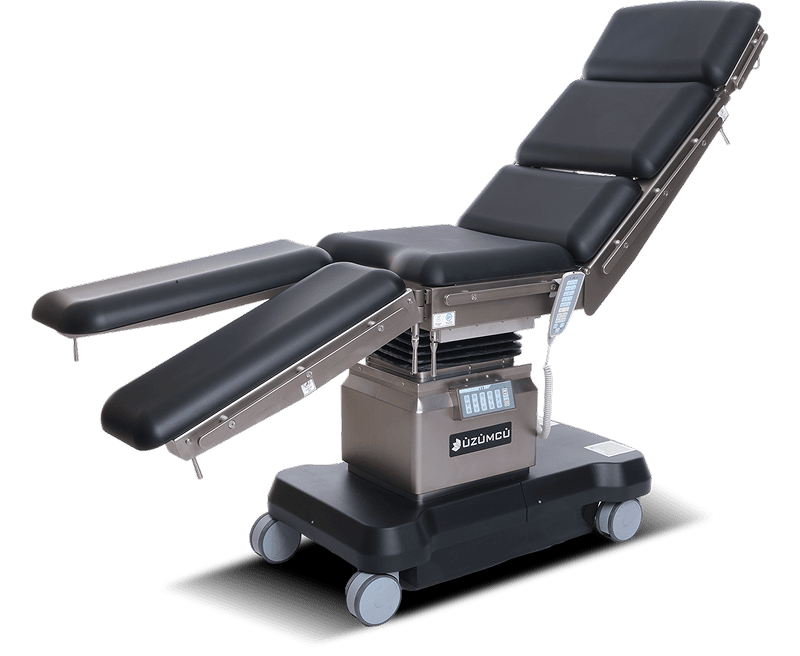

Modular Design Offering flexibility with a design that can be positioned at various angles for different types of surgical procedures, the system provides ease of use thanks to removable head and foot plates. The removable foot plate allows unrestricted access to the perineal area, ensuring maximum comfort during surgical procedures.

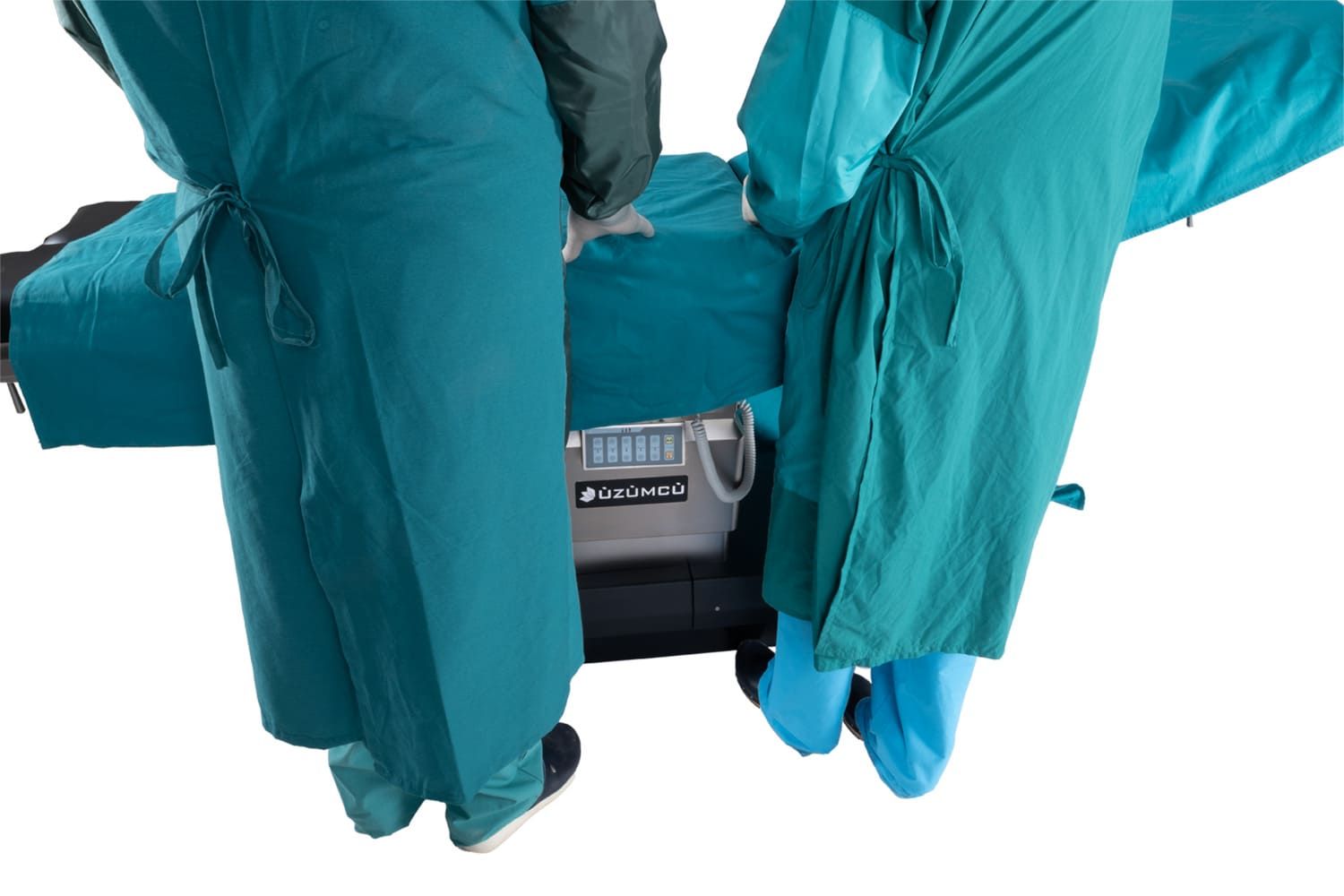

Easy Access for C-Arm The design provides easy access for the C-Arm device, offering full access to all areas of the table, while the X-ray transparent tabletop ensures high image quality. The appropriate base structure allows C-Arm scopes and surgical microscopes to easily approach the table.

Battery System Thanks to the rechargeable battery system, the table can be positioned even in the event of a power outage; the system offers safe use for up to 30 full movements.

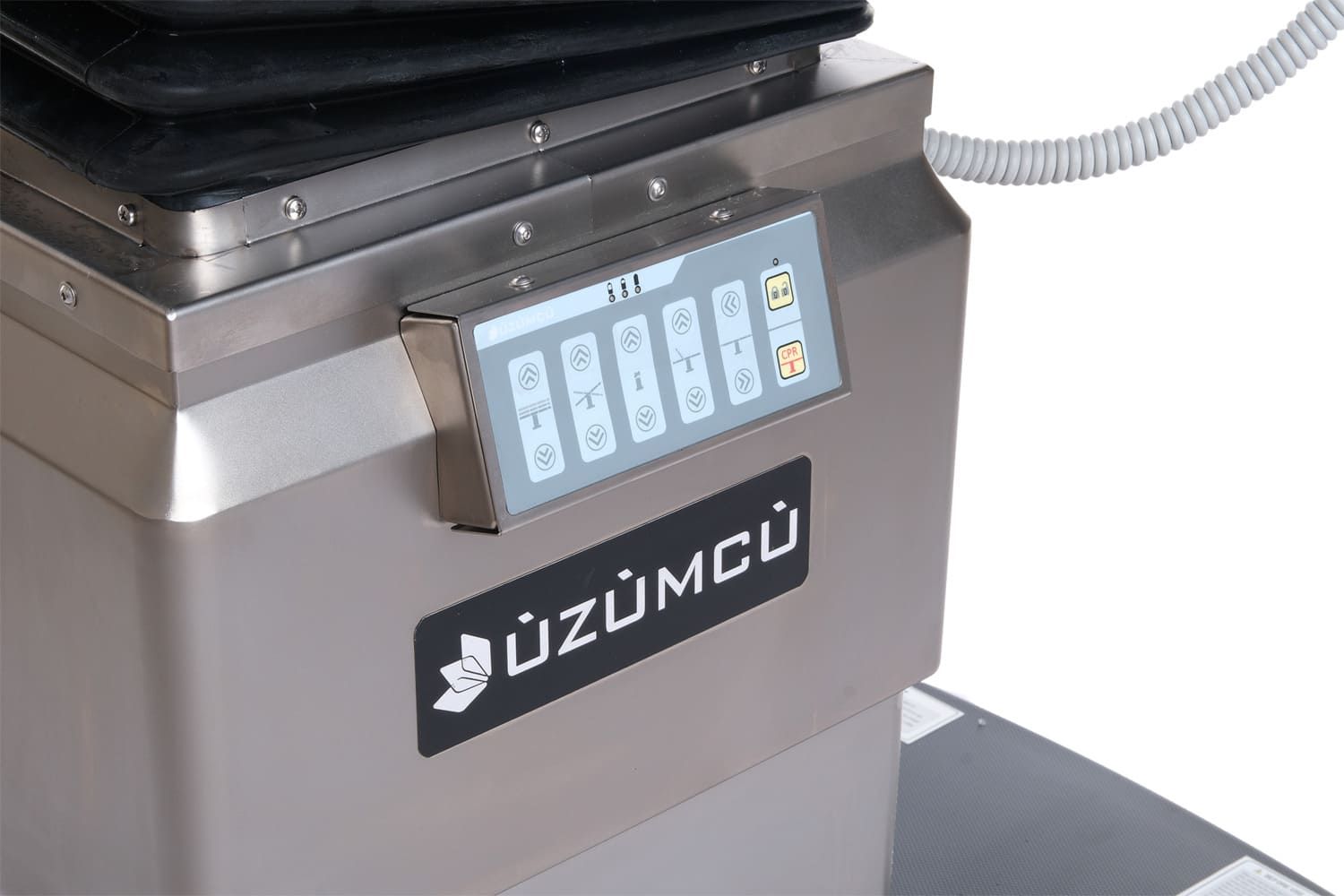

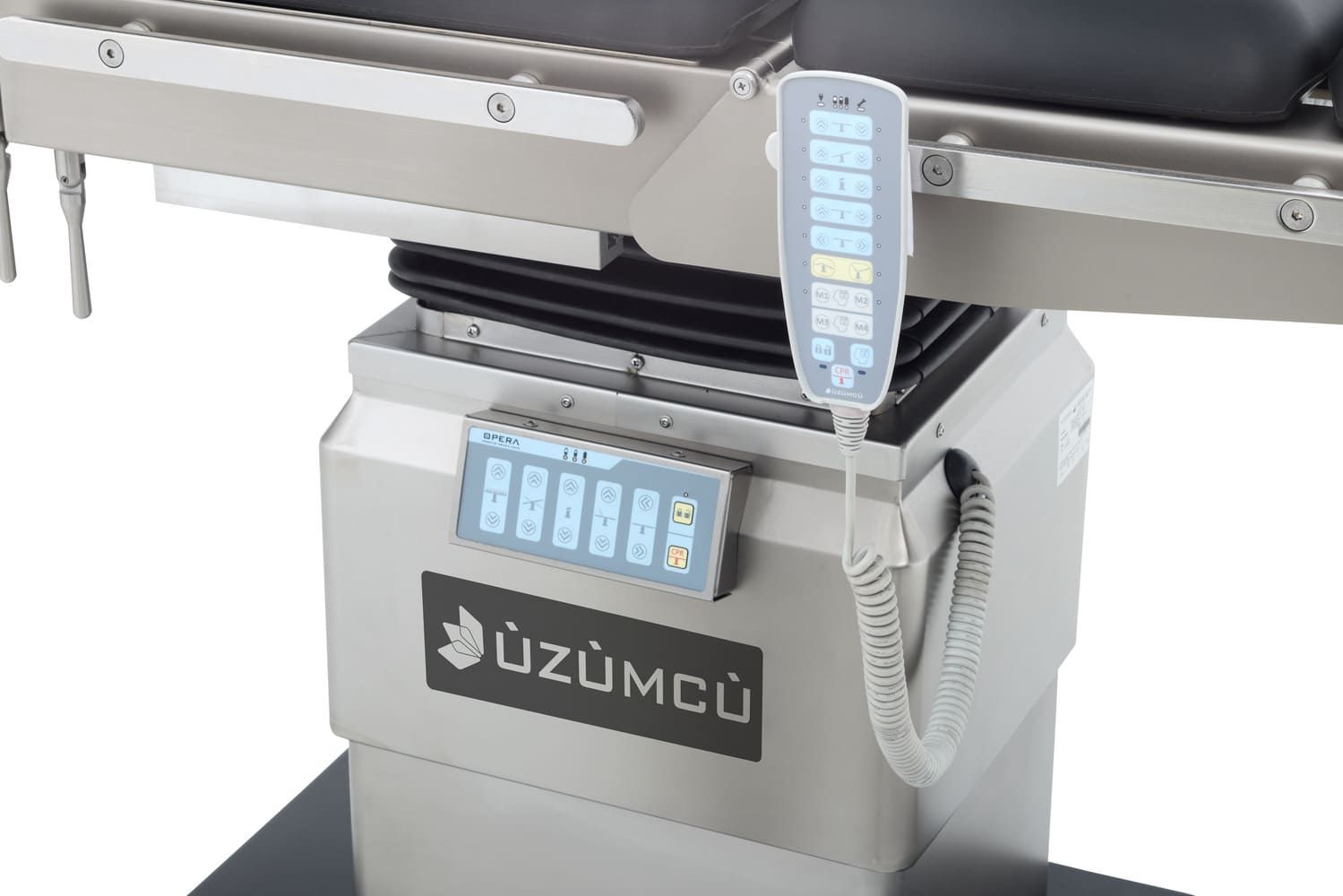

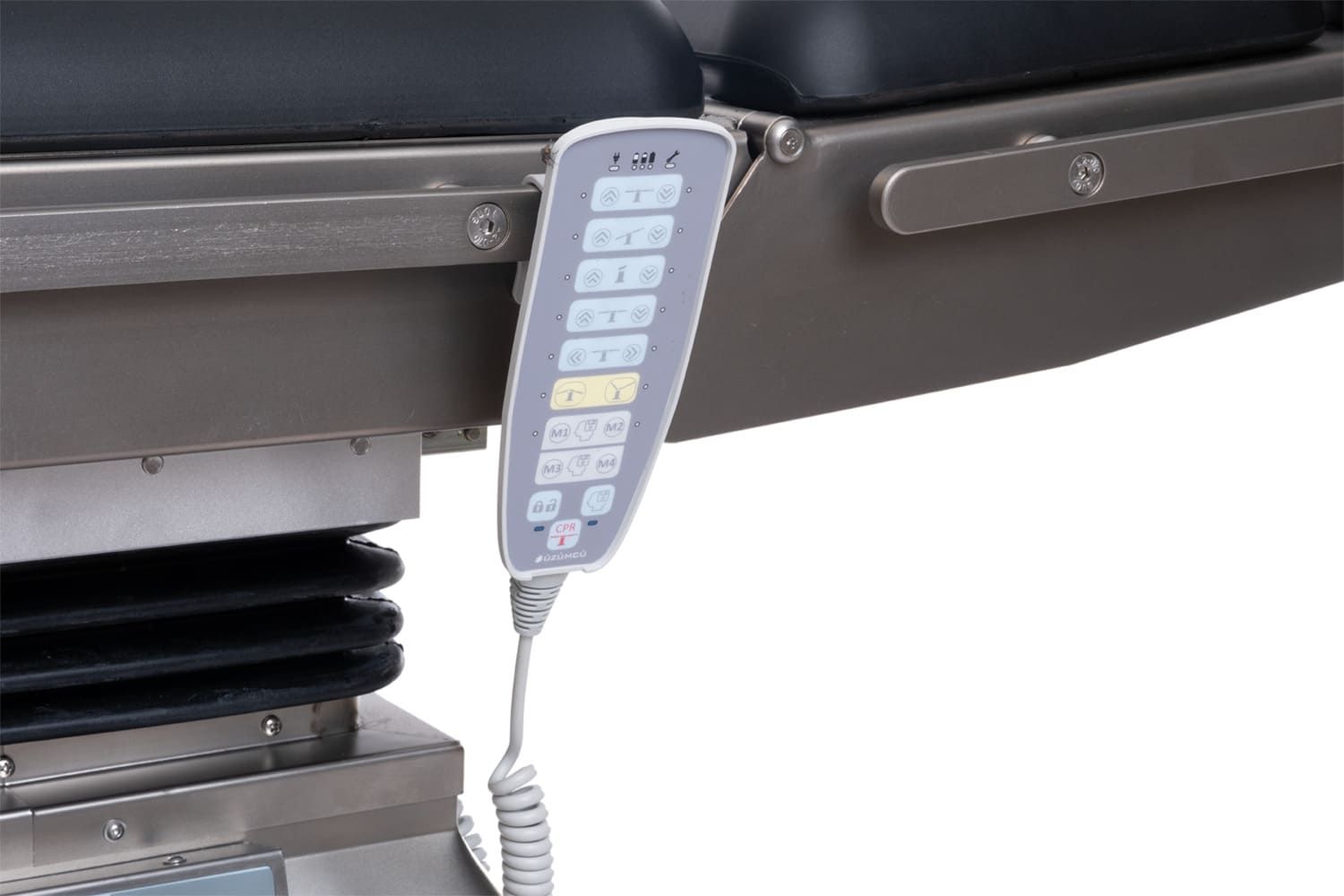

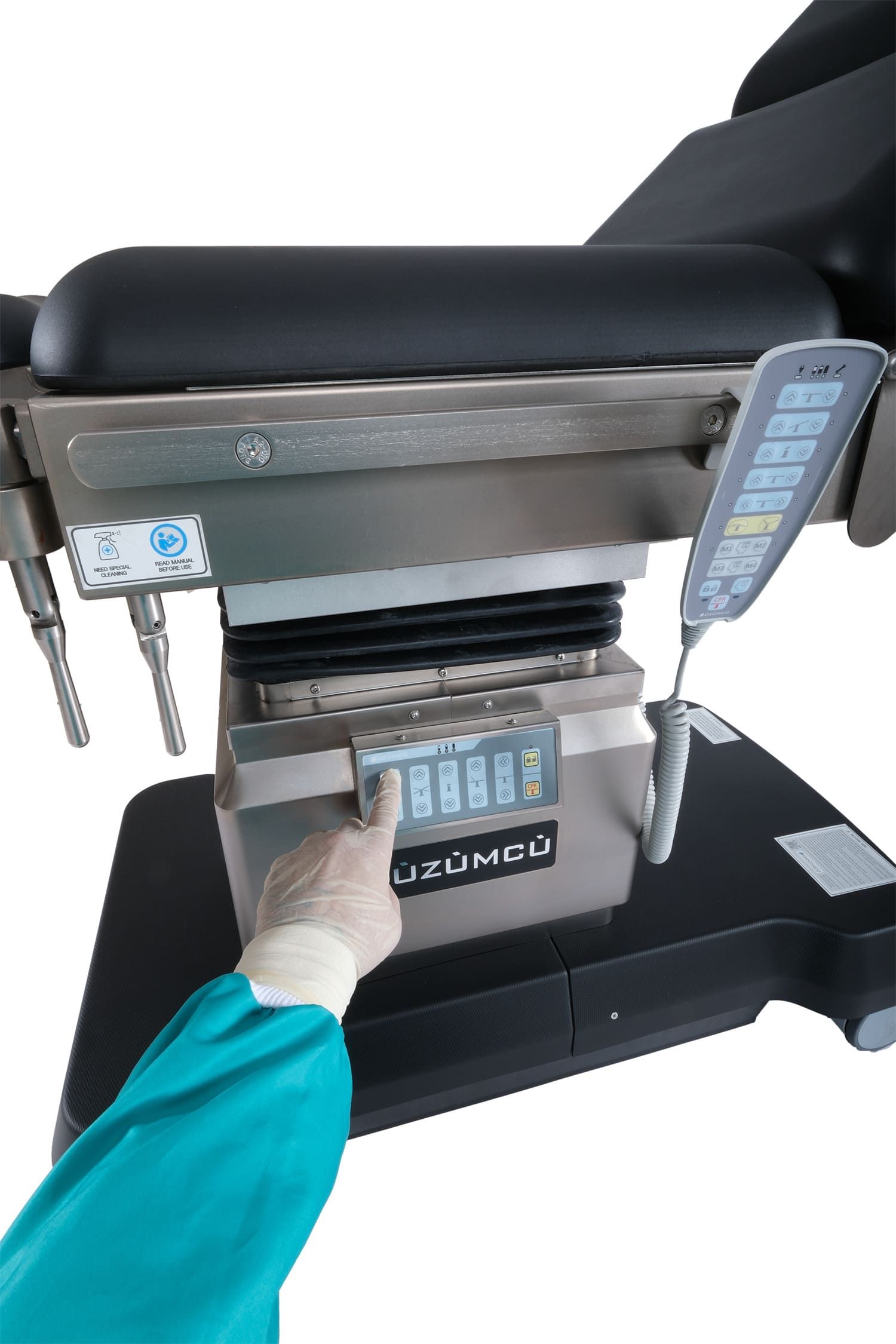

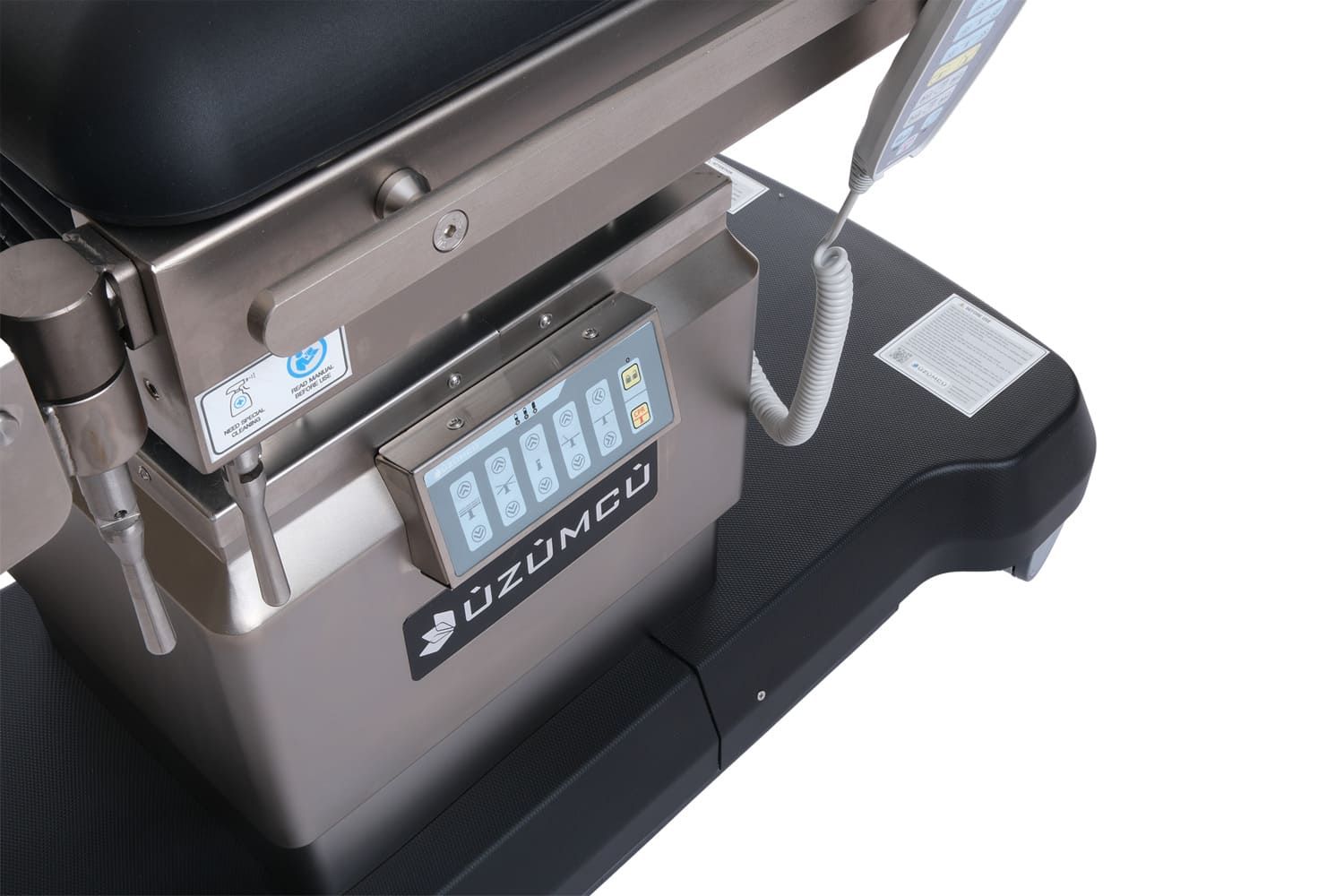

Multi-Control System The multi-control system, consisting of a wired hand control and body control panel, offers easy operation.

Technical Specifications

Width x Length	2200x610 mm (+30)
Minimum Height (With Mattress)	820 mm
Maximum Height (With Mattress)	1220 mm
Sliding Movement	300 mm
Maximum Patient Carrying Capacity	360 kg
Lateral Tilt Movement	+20° / -20°
Back Movement	+90° / -35°
Trendelenburg	+25°
Reverse Trendelenburg	-25°
Leg Section Up/Down	+30° / -90°
Leg Section Lateral Movement	80°
Head Section Up/Down	+40° / -80°
Renal Surgery Position	+135°
Flex/Reflex Position	+215° / -90°
Electric Movements	Height, Back Section, Trendelenburg, Reverse Trendelenburg, Lateral Tilt, Sliding
Mechanical Movements	Head Section, Leg Section, Renal Surgical Position, Table Ground Locking
