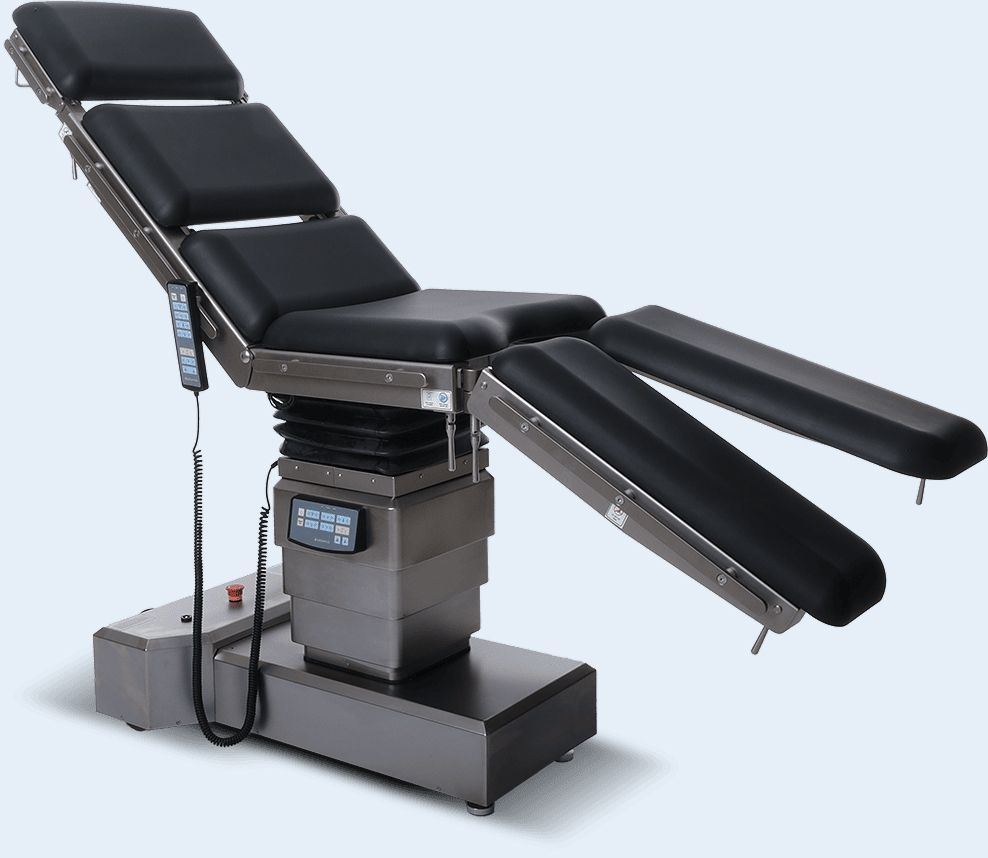

Electro-Hydraulic Operating Table

The Üzümcü OP-4P model electro-hydraulic operating table offers an ideal solution for operating rooms with its durability, functionality, and ease of use.

General Information

The Üzümcü OP-4P Operating Table is a reliable and ergonomic solution designed to meet the needs of modern operating rooms. Its electro-hydraulic structure provides precise, quiet, and stable movement during surgical operations. Versatile positioning options that adapt to different surgical specialties create a comfortable working environment for surgeons and healthcare personnel.

Its high-quality stainless-steel construction ensures full compliance with hygiene requirements while offering the advantage of long-term use. All electro-hydraulic movements are controlled safely and easily via wired hand control and body control unit. Its high lifting capacity and low minimum table height provide effective solutions for different surgical needs.

Developed with patient safety and comfort as a priority, the OP-4P is a powerful operating room solution that reflects Üzümcü's years of engineering and manufacturing experience.

Key Features

Functional Design Thanks to its modular design, the system adapts to different surgical procedures with high stability, enabling access to the necessary positions for any surgical procedure with a wide range of accessory options. The telescopic body structure offers flexibility for height adjustment at different levels.

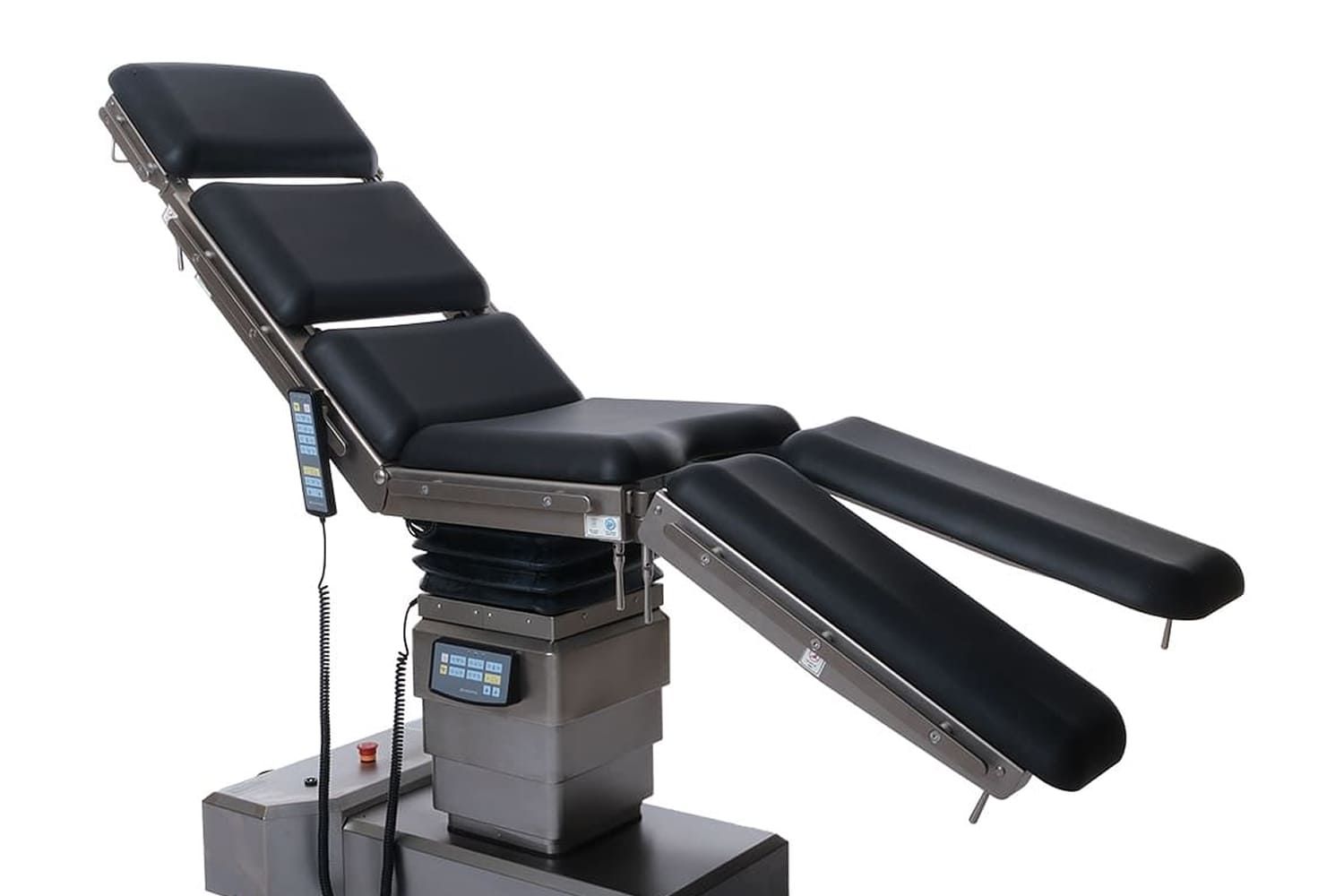

Sliding Movement With up to 300 mm of sliding movement in the horizontal plane, access to a wide imaging area is possible while maintaining the sterile field with the fluoroscopy device.

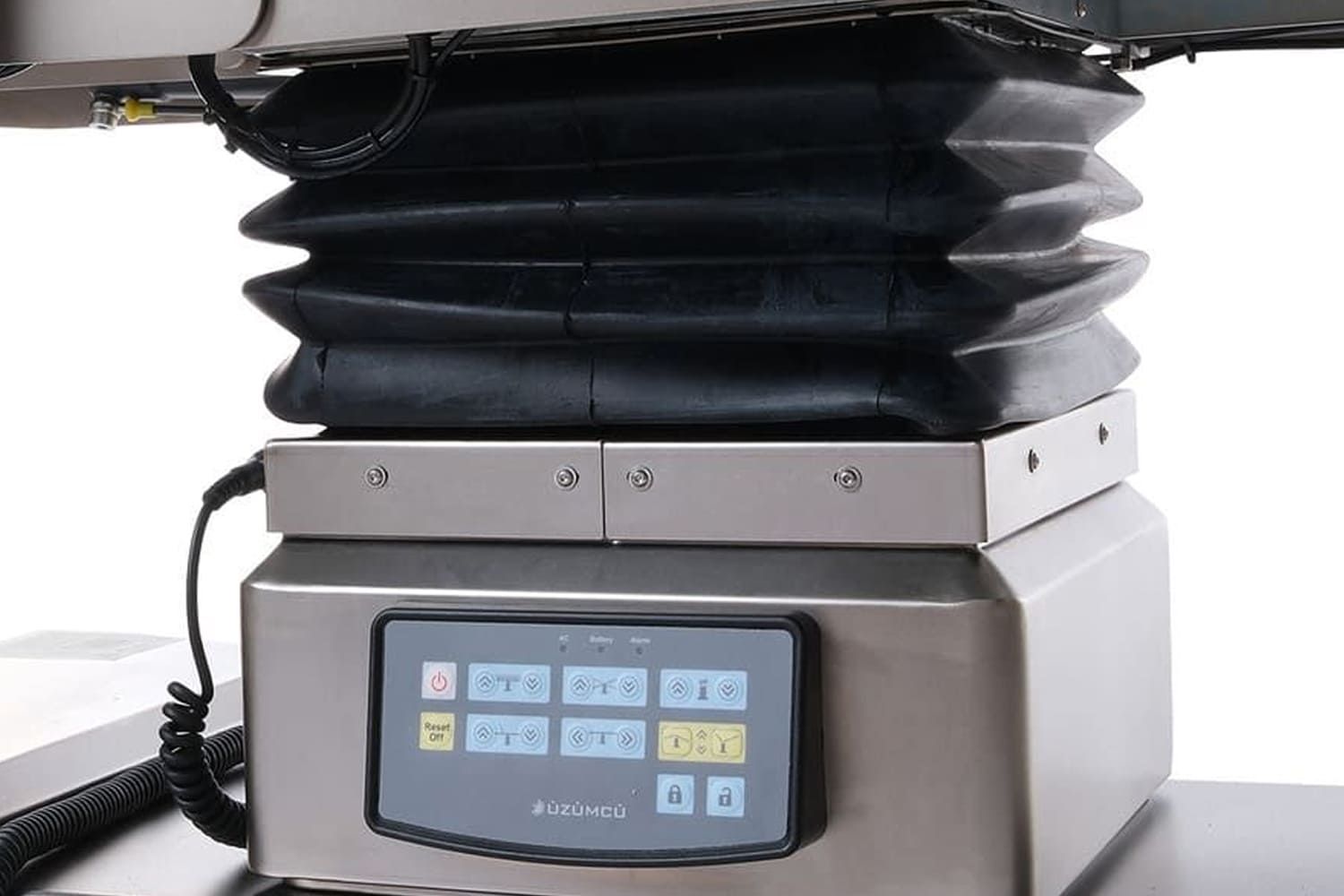

Optimal Space in the Surgical Field The kidney elevator, integrated into the table and adjustable up to 300° (120 mm), provides maximum visibility in the surgical field.

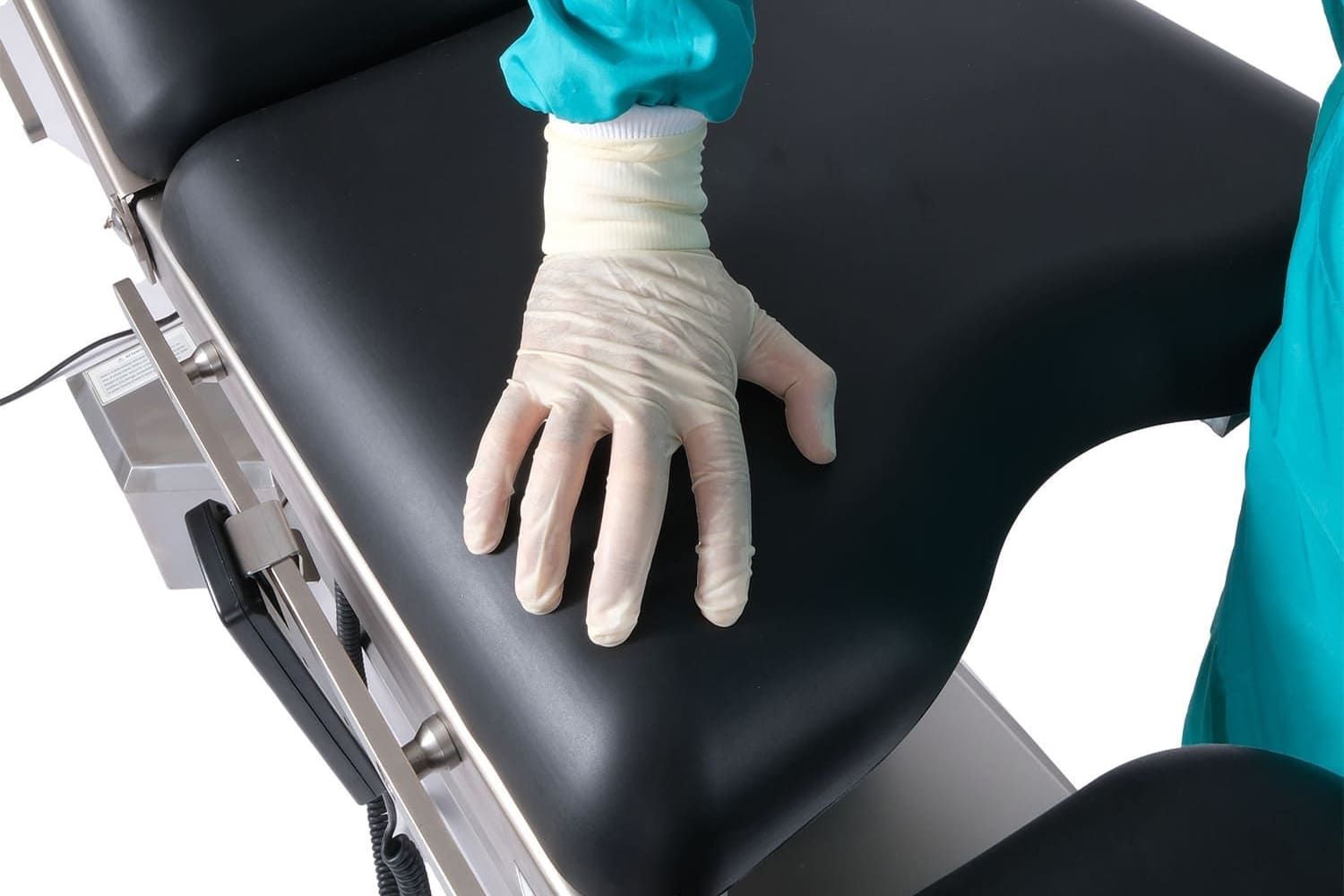

Different Pad Options The compact tabletop with high X-ray permeability provides high-quality imaging, while the viscoelastic or polyurethane mattresses options conform to the patient's body shape, increase comfort and help prevent decubitus ulcers. The compact base structure, manufactured with polyurethane molding, provides advanced hygiene conditions for safe and long-lasting use.

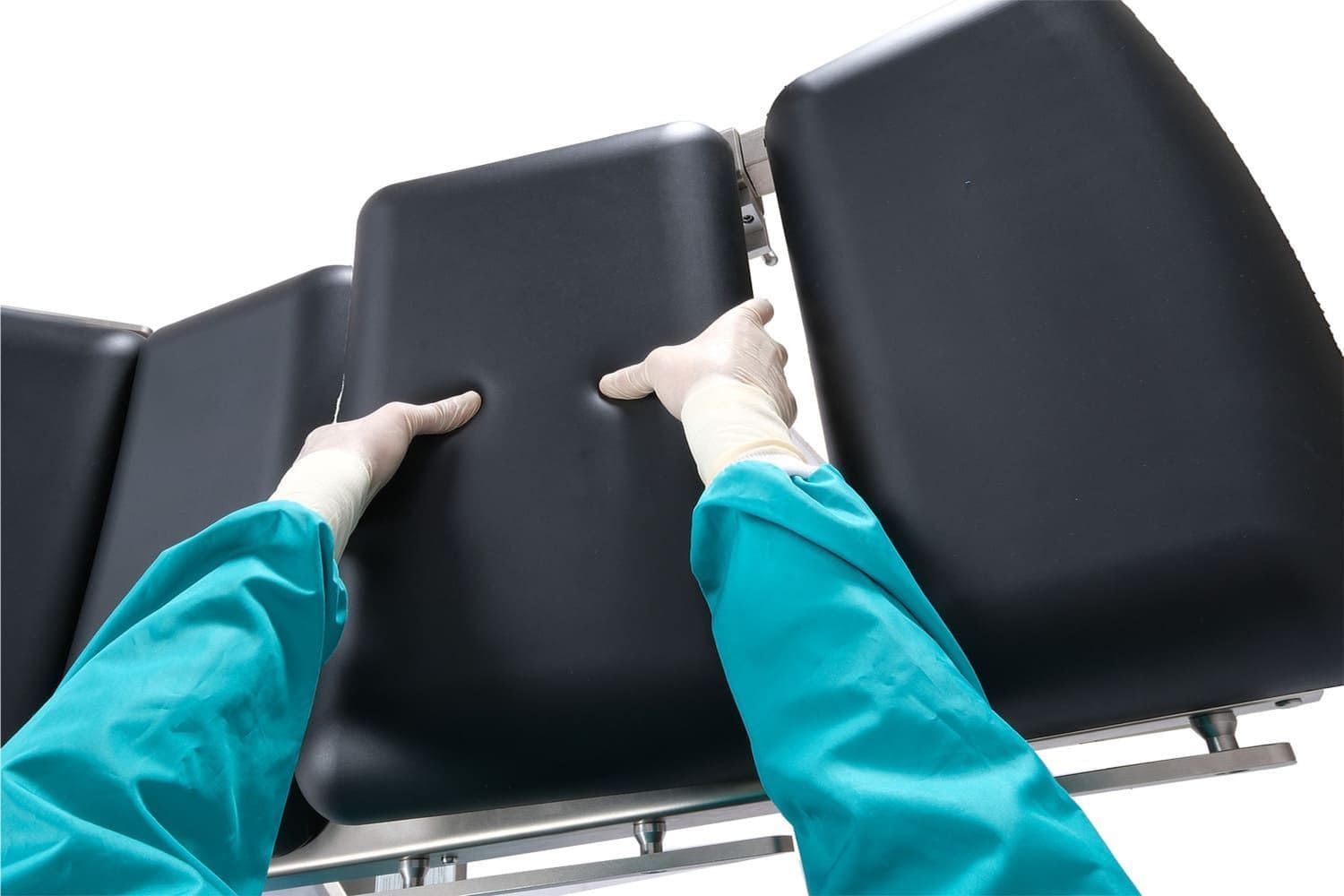

Modular Design Offering flexibility with a design that can be positioned at various angles for different types of surgical procedures, the system provides ease of use thanks to removable head and foot plates. The removable foot plate allows unrestricted access to the perineal area, ensuring maximum comfort during surgical procedures.

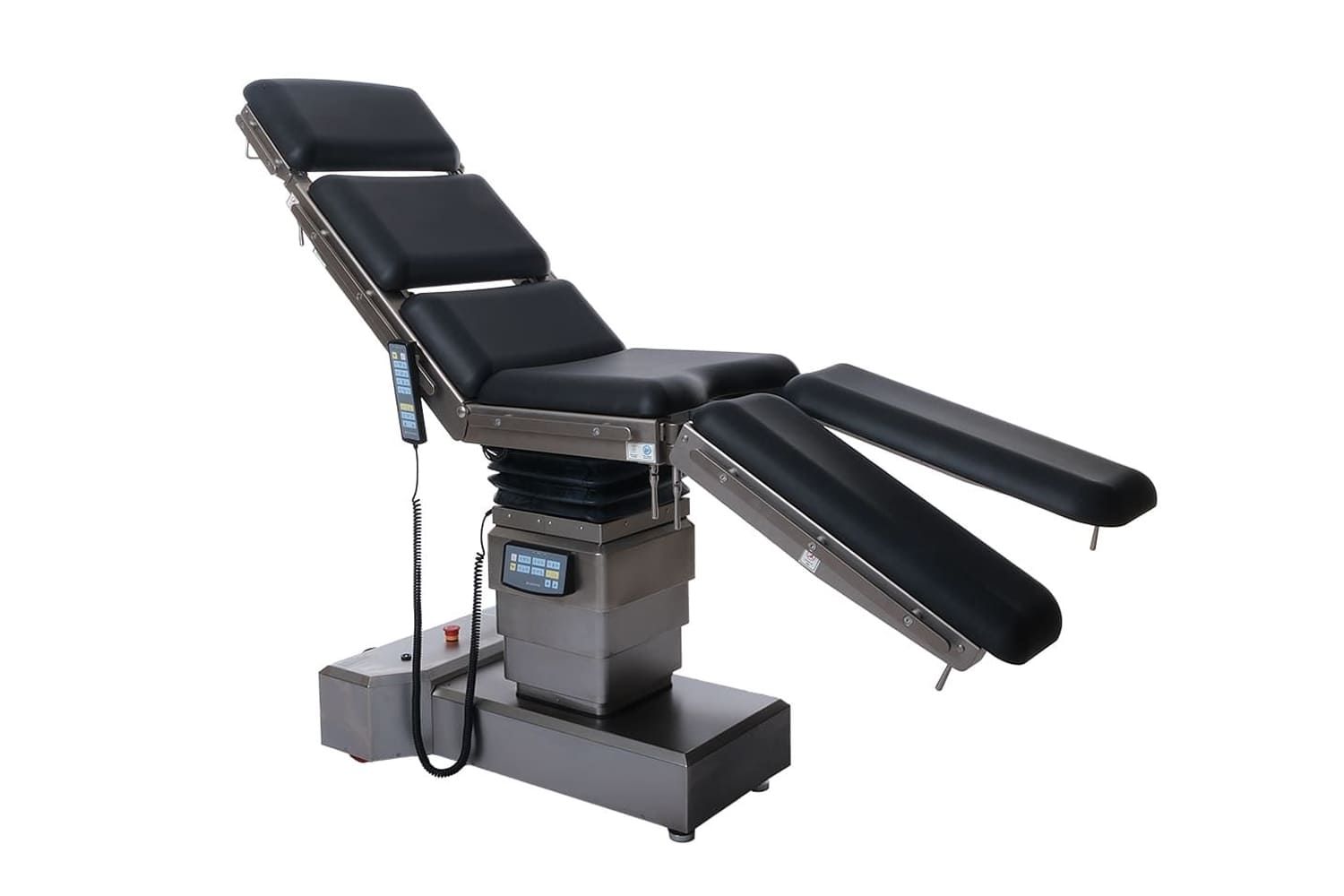

Easy Access for C-Arm The design provides easy access for the C-Arm device, offering full access to all areas of the table, while the X-ray transparent tabletop ensures high image quality. The appropriate base structure allows C-Arm scopes and surgical microscopes to easily approach the table.

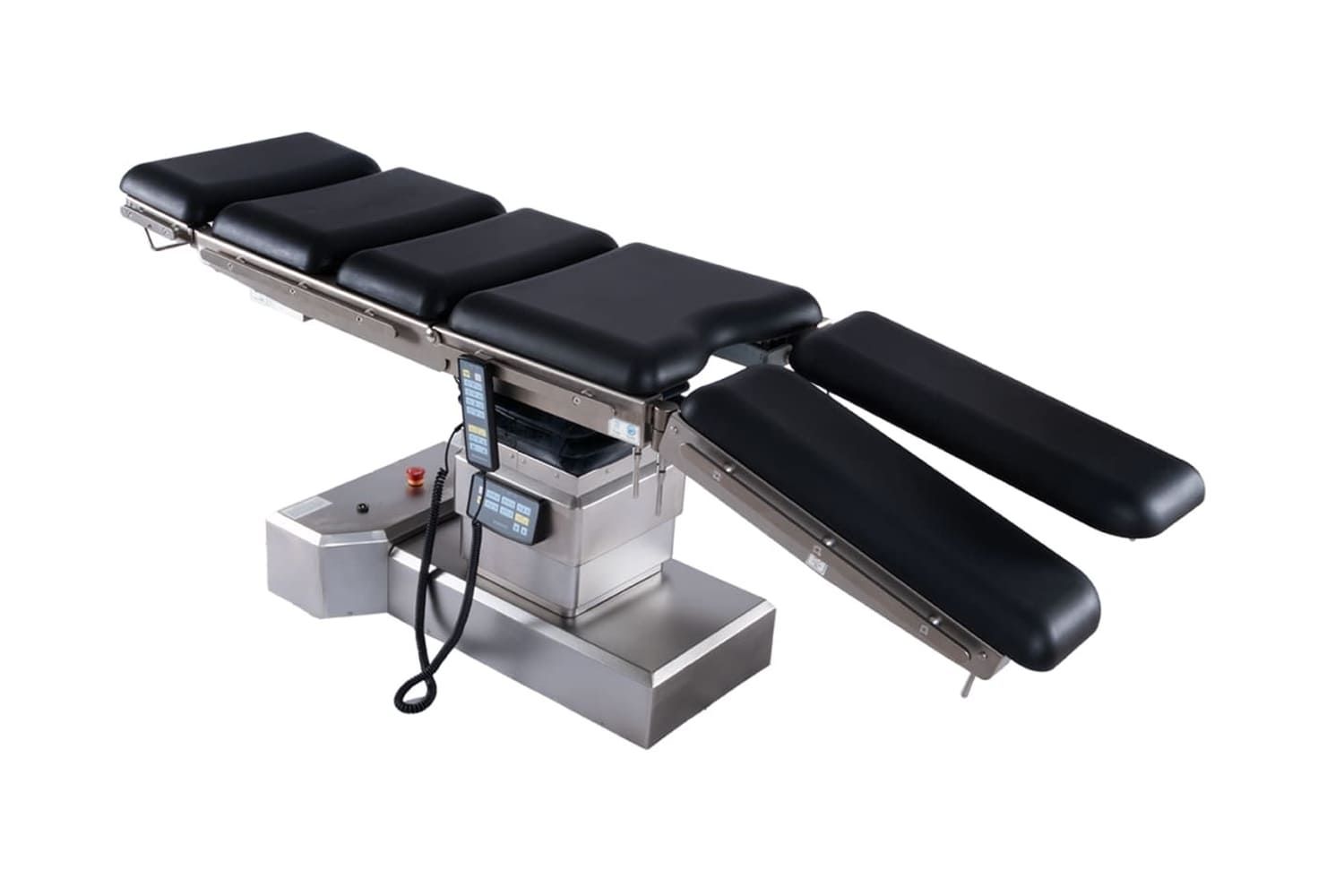

Battery System Thanks to the rechargeable battery system, the table can be positioned even in the event of a power outage; the system offers safe use for up to 30 full movements.

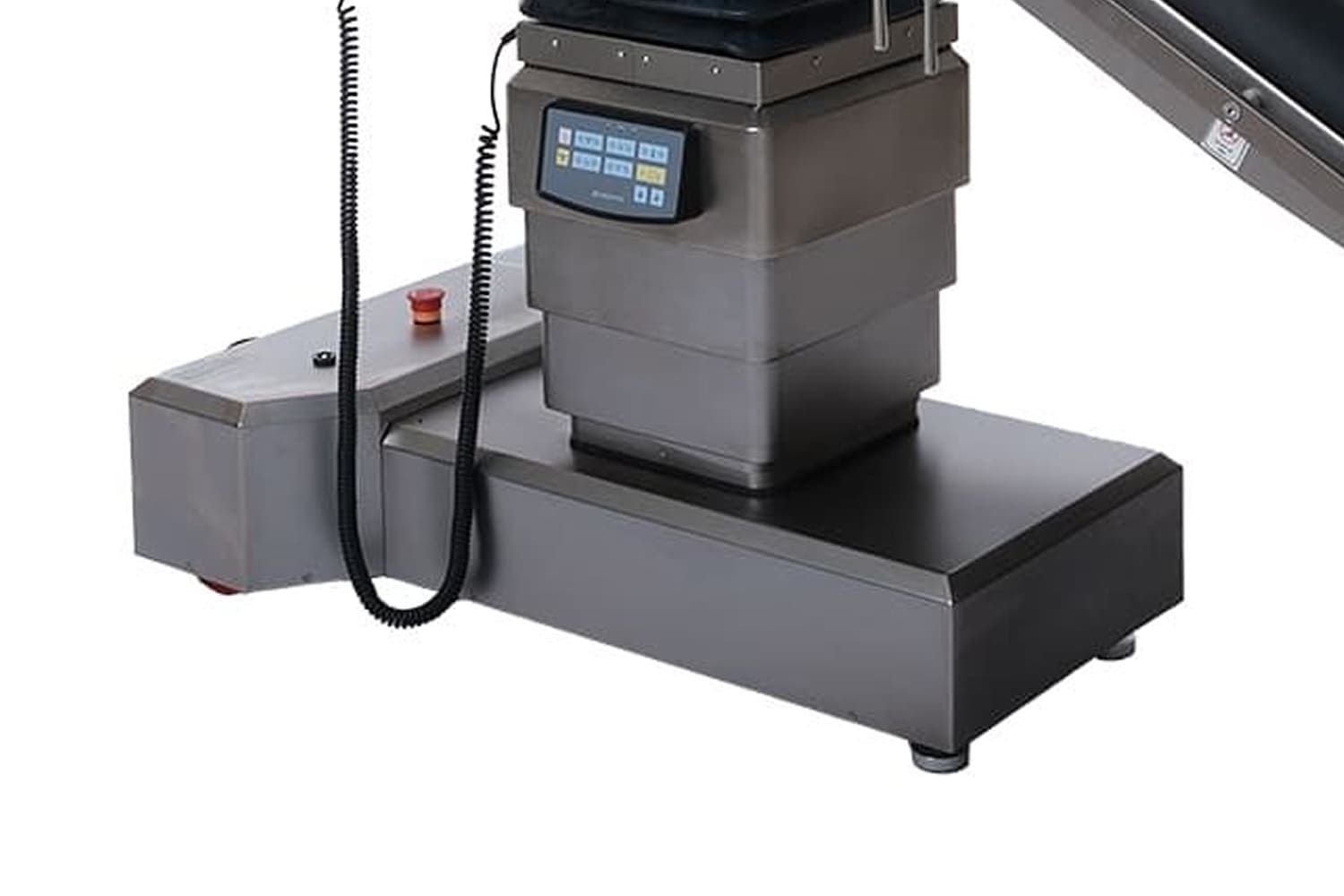

T-Base Structure The T-type base structure allows surgical teams and equipment to approach the table optimally. The stainless-steel base and body provide high resistance to breakage and corrosion, ensuring long-term use.

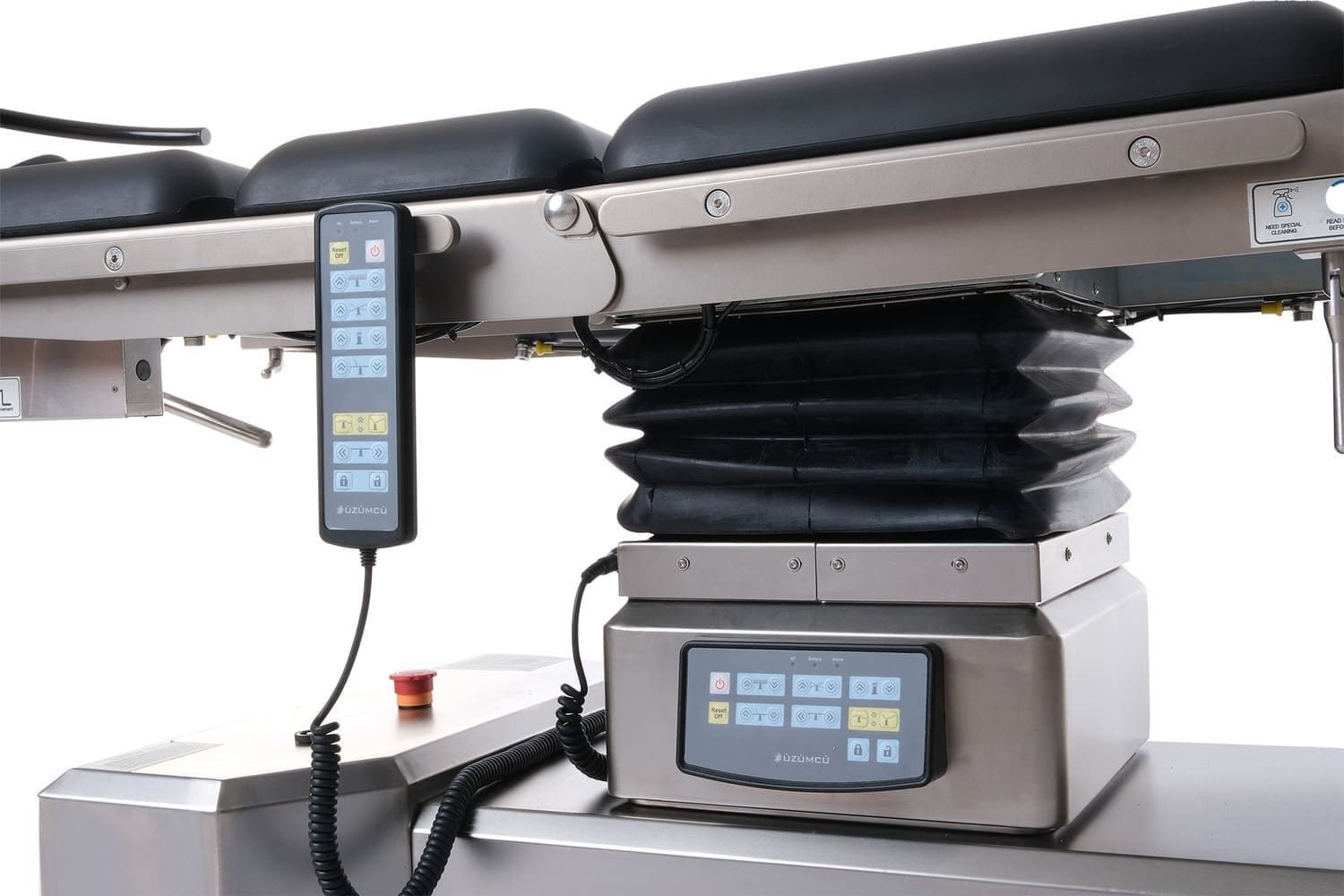

Multi-Control System The multi-control system, consisting of a wired hand control and body control panel, offers easy operation.

Technical Specifications

Specification	Value
Minimum Height (With Mattress)	670 mm
Maximum Height (With Mattress)	1090 mm
Sliding Movement	300 mm
Maximum Patient Carrying Capacity	450 kg
Lateral Tilt Movement	+20° / -20°
Back Movement	+80° / -45°
Trendelenburg	+30°
Reverse Trendelenburg	-30°
Leg Section Up/Down	+30° / -85°
Leg Section Side Movement	90°
Head Section Up/Down	+30° / -90°
Kidney Surgery Position	+135°
Flex/Reflex Position	+225° / -100°
Electric Movements	Height, Back Section, Trendelenburg, Reverse Trendelenburg, Lateral Tilt, Sliding, Table Floor Locking, Flex, Reflex
Mechanical Movements	Head Section, Leg Section, Kidney Surgery Position
