EK-250Electrocautery Device 250W
EK-250

Electrocautery Device 250W

General Information

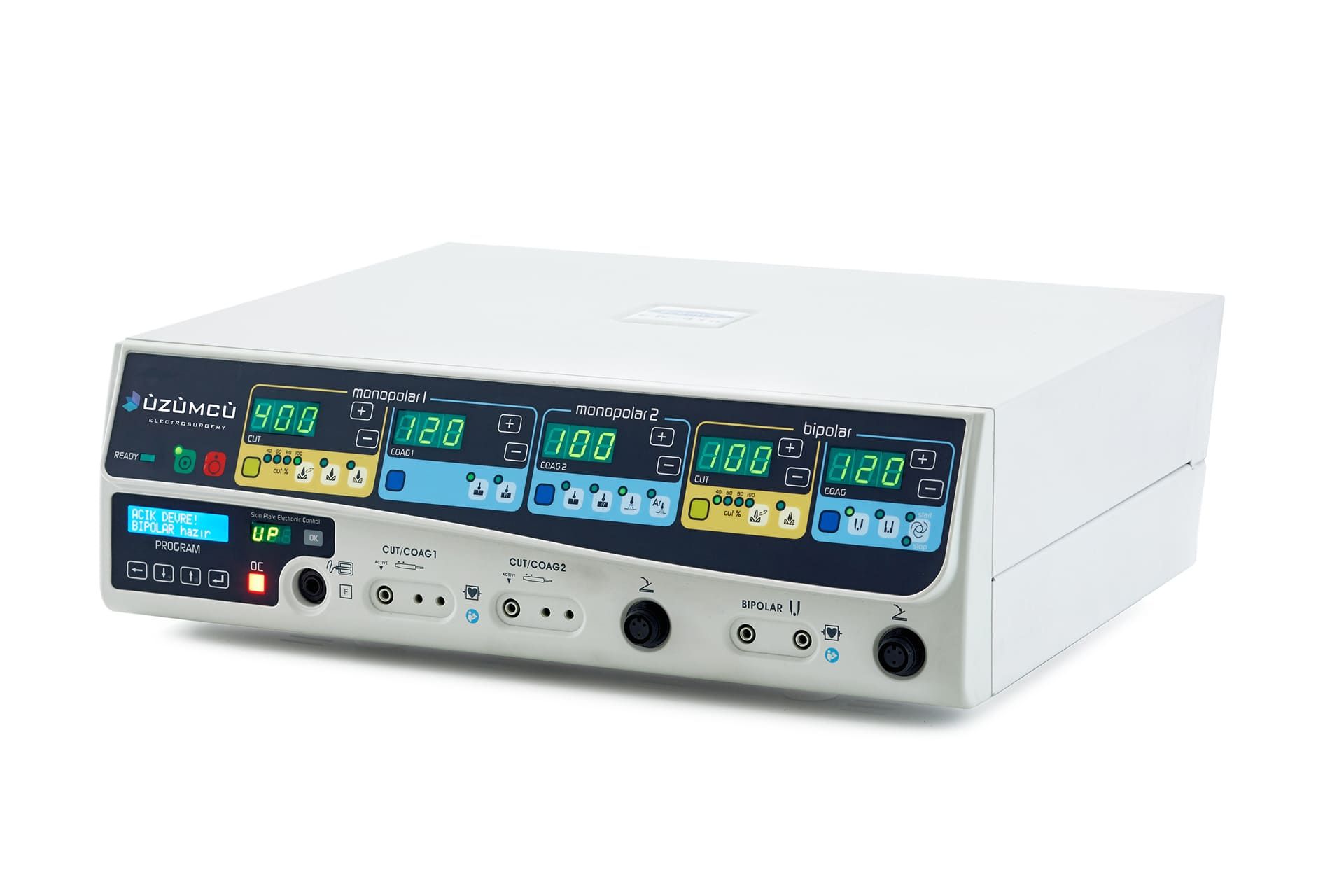

The Üzümcü EK-250 Electrosurgical Unit, with a maximum output power of 250 W, is an electrosurgical solution suitable for use in all surgical specialties, including general surgery, orthopedics, urology, cardiovascular surgery, and neurosurgery, featuring monopolar and bipolar operating modes.

  • Controlled and precise surgical performance with cutting modes at different modulation levels,
  • Suitable for simultaneous use by two surgeons in monopolar and bipolar modes during multiple surgical procedures,
  • Easy monitoring and control thanks to an LCD screen that displays device functions,
  • Instant information about system status with visual and audible alarms,
  • Customizable power and volume levels for user-specific settings,
  • Bipolar cutting features,
  • Effective hemostasis and operational safety thanks to the vessel sealing feature,
  • Practical and fast operation with automatic activation during bipolar use,
  • Usage safety with sound alerts that vary according to bipolar and monopolar modes,
  • Wide, fast, and contactless coagulation with the spray coagulation mode,
  • Patient plate electronic control system that continuously monitors the resistance between the patient's body and the return electrode, alerts the user audibly and visually in case of insufficient contact or disconnection, and helps prevent the formation of cautery burns,
  • Memory system that stores 50 different usage modes in memory using a pre-programming method, eliminating the need for readjustment and providing quick access when needed.

Technical Specifications

MONOPOLAR
Maximum Output Power CUT 250 W 300 Ω
Maximum Output Power Cut-Coag CUT80% 220 W 300 Ω
Maximum Output Power Cut-Coag CUT60% 200 W 300 Ω
Maximum Output Power Cut-Coag CUT40% 150 W 300 Ω
Maximum Output Power Cut ENHANCED 150 W 300 Ω
Maximum Output Power Cut-coag BLEND 150 W 300 Ω
Maximum Output Power Coag SPEEDY 100 W 500 Ω
Maximum Output Power Coag DEEP 100 W 200 Ω
Maximum Output Power Coag SPRAY 60 W 2000 Ω
Maximum Output Power Coag SPRAY ARGON 60 W 2000 Ω
BIPOLAR
Maximum Output Power CUT 120 W 50 Ω
Maximum Output Power Cut-Coag CUT80% 100 W 50 Ω
Maximum Output Power Cut-Coag CUT60% 100 W 50 Ω
Maximum Output Power Cut-Coag CUT40% 60 W 50 Ω
Maximum Output Power Cut-Coag BLEND 120 W 150 Ω
Maximum Output Power Coag COAG 120 W 50 Ω
Vessel Sealing Output Power 200 W 50 Ω
Operating Frequency Monopolar / Bipolar 425 kHz / 525 kHz
Selectable Input Voltage 115 - 230 V AC / 50-60 Hz
Dimensions (LxWxH mm) 470 × 380 × 150 mm

Documents

Data Sheet
