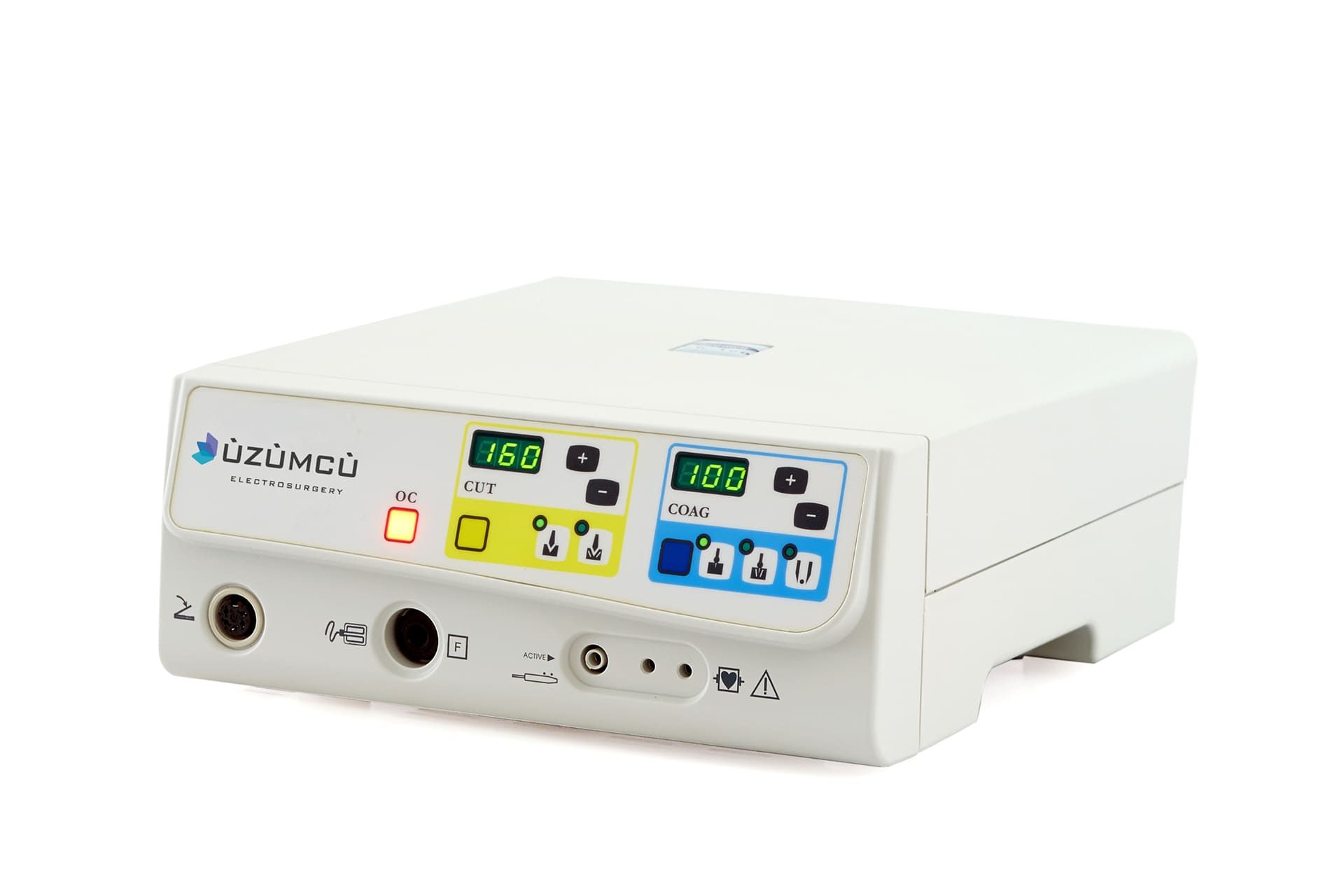

EK-160Electrocautery Device 160W
EK-160

Electrocautery Device 160W

General Information

The Üzümcü EK-160 model Electrocautery Device is an electrosurgical solution designed for minor surgical procedures and outpatient applications, featuring monopolar and bipolar operation capabilities with a maximum output power of 160 W.

  • Reliable and controlled performance with 160 W maximum output power,
  • Surface and deep coagulation capability with pure and blended cutting modes,
  • Monopolar and bipolar coagulation functions,
  • Flexible control for the user thanks to adjustable power and volume levels,
  • Enhanced safety with automatic system control at every startup,
  • Practical and comfortable use with foot pedal and manual operation options,

Technical Specifications

Maximum Output Power CUT 160W - 250Ω
Maximum Output Power BLEND 120W - 200Ω
Maximum Output Power FORCED COAG 100W - 150Ω
Maximum Output Power SOFT COAG 80W - 100Ω
Maximum Output Power BIPOLAR 60W - 100Ω
Operating Frequency 600 kHz
Input Voltage 115-230V AC / 50-60 Hz
Dimensions 254x288x104 mm

Documents

Data Sheet
