1420 SeriesVacuum Regulator
1420 Series

Vacuum Regulator

General Information

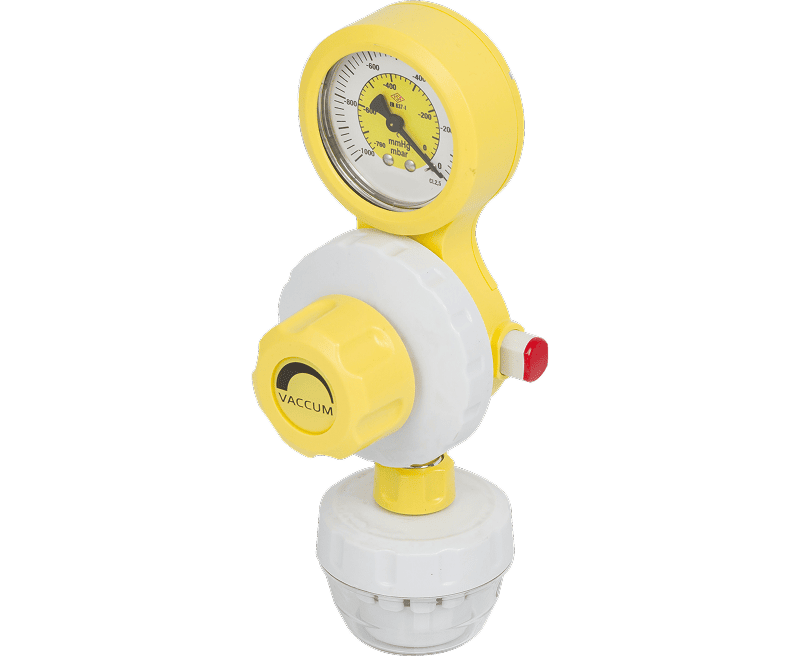

The Üzümcü Vacuum Regulator delivers reliable performance in clinical environments requiring intensive use, thanks to its durable techno-polymer housing. The product is equipped with a quick On/Off button for easy operation, a vacuum adjustment knob for precise control, and a control vacuum manometer available in two different scale options (–250 mbar or –1000 mbar).

The built-in de-pressure safety valve prevents excessive vacuum buildup, ensuring safe operation. Additionally, it features an autoclavable safety jar system designed to protect the central vacuum line against liquid backflow.

The Üzümcü Vacuum Regulator offers a modern and durable solution developed with both user safety and hygiene standards in mind.


Technical Specifications



Pediatric (-250 mbar)

Adult (-1000 mbar)

Max. Suction Flow 50 l/min (-250 mbar) 115 l/min (-950 mbar)
Max. Effective Negative Pressure Value -250 (+/-20mbar) -1000 (+/-20mbar)
Vacuum Manometer  0 / - 400 mbar
0 / - 315 mmHg
0 / - 1000 mbar
0 / - 760 mmHg
Maximum Depression Supply Value -950mbar -950mbar

Documents

Data Sheet
