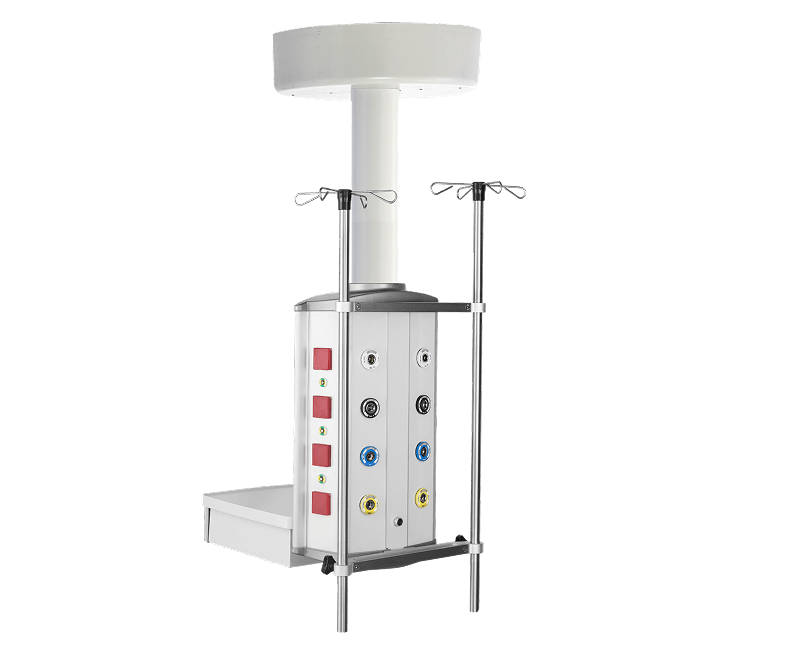

5070.50Fixed Pendant
5070.50

Fixed Pendant

Medical pendants are designed to provide medical gas, electrical, and data connections in an ergonomic and controlled manner in operating rooms, intensive care units, recovery rooms, and similar medical settings.

General Information

Üzümcü Medical Pendants support clinical workflow by enabling equipment to be precisely positioned in the desired location thanks to their mobility. Safe use and space efficiency are prioritized.

These ceiling-mounted systems provide easy access to medical equipment via medical gas outlets, electrical, and data connections. By eliminating cable and hose clutter, they create a hygienic environment. With extensive mobility, modular accessories, monitor mounts, and lighting solutions, they optimize workflow and enhance patient safety.


Technical Specifications

Material  Aluminum extrusion main body
Movement  Manual 350-degree rotation around the axis
Power Input  220V AC - 50Hz
Standard Accessories  8 electrical outlets, 6 grounding points, 1 drawer shelf, 2 IV pole mounts
Optional Accessories Medical gas outlets, phone outlet, UPS outlet, data outlet, and nurse call system outlet, examination lamp, monitor stand
Load Capacity   220 kg
