66.1610Oxygen Production Systems
66.1610

Oxygen Production Systems

General Information

Üzümcü Oxygen Production Systems are next-generation solutions developed to meet the medical oxygen needs of hospitals and healthcare facilities through an on-site production model. With these systems, healthcare institutions can manage their oxygen supply independently, reliably, and sustainably through their own automated infrastructure. When necessary, integration with cylinder systems ensures instant backup security.

The systems produce oxygen from ambient air using PSA (Pressure Swing Adsorption) technology. Oxygen with a purity of 93% ±3 is supplied continuously at a flow rate ranging from 3 to 60 m³/h. The production process is designed to maintain a constant purity level regardless of changes in consumption.

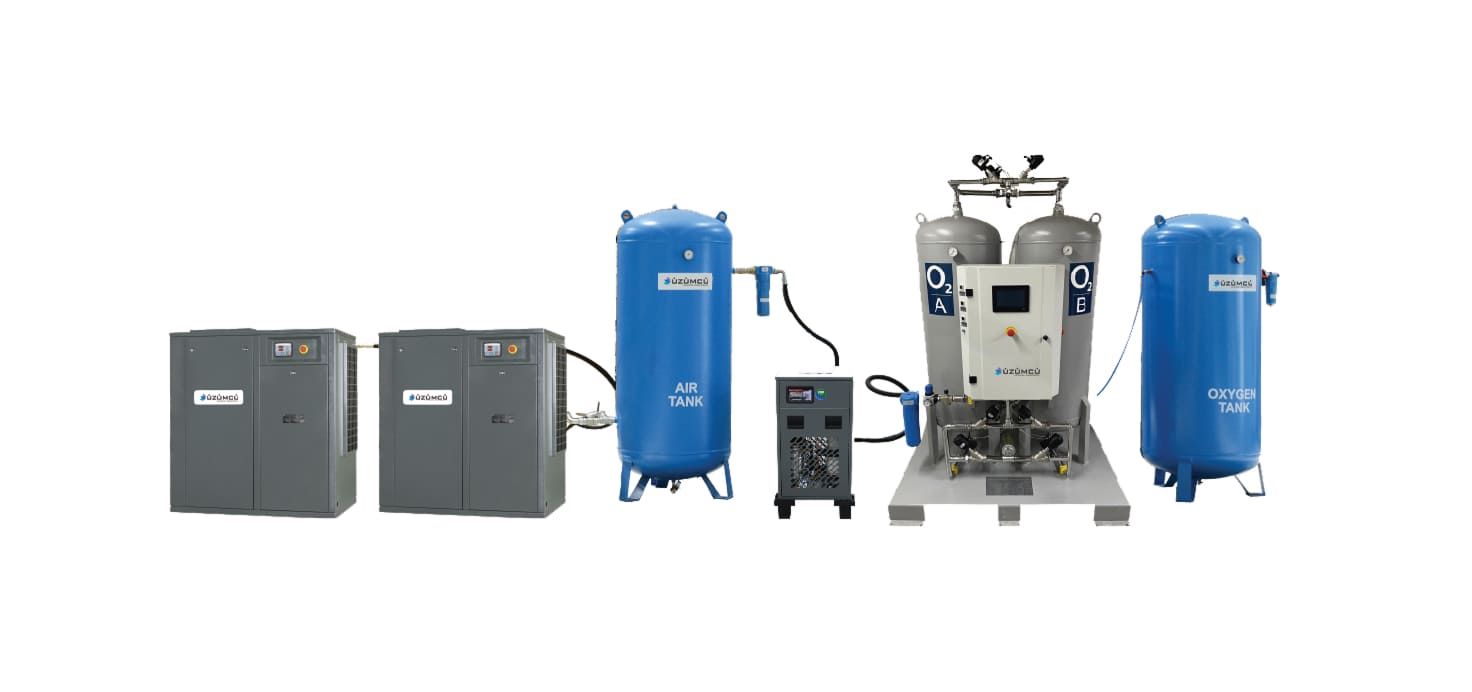

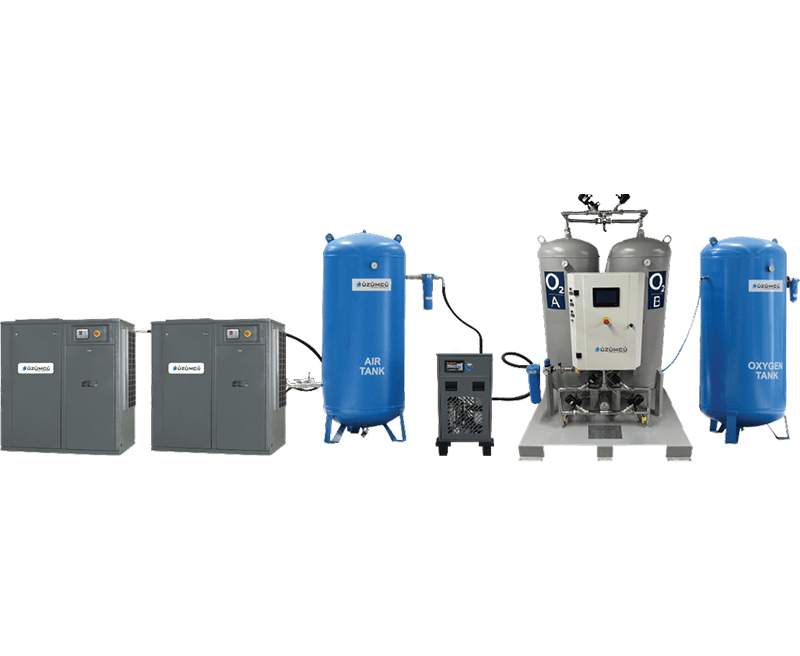

A standard Üzümcü oxygen production station includes:

  • Screw-type air compressor
  • Air dryer
  • PSA oxygen generator
  • Activated carbon tower
  • Air and oxygen tanks
  • Advanced filtration systems

It consists of these components. All equipment operates within an integrated system architecture, delivering high efficiency, operational stability, and long-lasting performance.

Üzümcü Oxygen Production Systems are designed and manufactured in compliance with the HTM 02-01, HTM 2022, and EN ISO 13485 standards. This ensures the highest levels of quality consistency, system safety, and patient safety.

Key Benefits

  • Continuous and uninterrupted oxygen production
  • High-efficiency and reliable PSA technology
  • Constant purity level of 93% ±3
  • Capacity range of 3–60 m³/h
  • Space-saving compact design
  • Payback period of 12–24 months
  • Fully automatic operation system
  • Purity monitoring via a user-friendly display
  • Eliminates safety risks associated with high-pressure oxygen cylinders
  • Service life of up to 10 years with proper maintenance

System capacity is designed based on the hospital’s number of beds, clinical areas, and total oxygen consumption needs. Solutions offered through Üzümcü Engineering’s approach provide cost advantages, operational independence, and sustainable oxygen management in healthcare facilities.


Technical Specifications

Article Code O₂ Generator
Capacity (93% purity)
Feed Air Capacity Air Dryer Capacity O₂ Generator
Capacity
Min. Air Tank (L) Min. O₂ Tank (L)
m³/h l/min 90% 92% 94% 96%
66.1610 3 50 650 1450 54 51 48 45 250 150
66.1611 5 84 950 2170 108 102 96 90 350 250
66.1612 8 134 1400 2830 162 153 144 135 500 350
66.1613 11 184 1960 4700 216 204 192 180 750 500
66.1614 14 234 2800 5900 270 255 240 225 1000 600
66.1615 18 300 3500 5900 396 374 352 330 1000 750
66.1616 25 417 4000 5900 432 408 384 360 1750 1000
66.1617 30 500 5400 9800 504 476 448 420 2000 1300
66.1618 35 584 6750 13800 684 646 608 570 2500 1500
66.1619 45 750 8460 18300 828 782 736 690 3000 2000
66.1620 60 1000 11070 21800 972 918 864 810 4000 2500
