DL-62CSurgical Ceiling Light
DL-62C

Surgical Ceiling Light

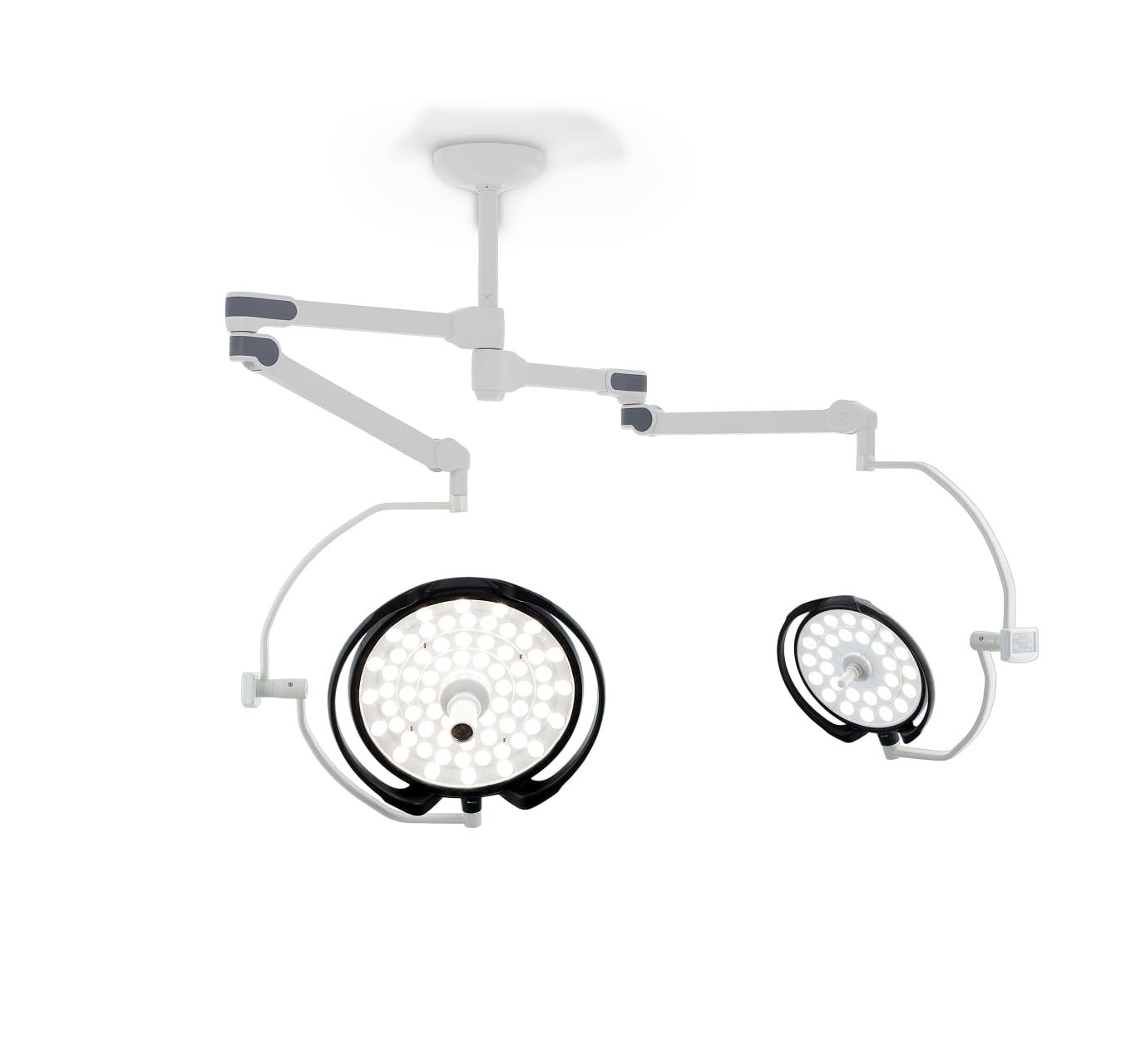

The Üzümcü DL-62C model camera-equipped surgical ceiling light provides safe and comfortable lighting in operating rooms with its light quality and ergonomic design.

General Information

The Üzümcü DL-62C model camera-equipped surgical ceiling light is a versatile surgical lighting solution designed with high-performance LED lighting technology to meet the high lighting standards required in operating rooms, providing clear and shadow-free vision in surgical areas. The integrated camera system allows real-time monitoring and optional recording of the surgical field.

The lamp consists of a main head with an integrated camera and illumination power of 160,000 lux, and a satellite head with an illumination power of 120,000 lux.

The system supports clear and accurate visualization of the surgical field thanks to its homogeneous and shadow-free light distribution and adapts to different surgical needs with adjustable color temperature and light intensity. Its ergonomic design and precise positioning capability provides a comfortable and efficient working environment for surgeons and operating room staff, while the camera and monitor integration enhances training, consultation, and operational coordination, contributing to safer and more controlled surgical procedures.


Technical Specifications

Head Diameter 650 mm / 440 mm
Number of Heads 2 (1 Main Head / 1 Satellite Head)
Illumination Power (1m) 160,000 lux / 120,000 lux
Control Panel 4.3" LCD Touch Panel
Control Panel Functions On/Off, Light Intensity Adjustment, Focus Adjustment, Endoscopy Mode, Color Temperature Adjustment, One-Touch Maximum Light Intensity
Color Temperature Adjustable in 7 steps between 3,500K and 5,000K
Color Rendering Index (CRI) Ra 96%
Light Intensity Adjustment 1% - 100%
Number of LED Modules 68 / 28
Adjustable Light Diameter 120 - 300 mm / 148 - 162 mm
LED Lifespan 60,000 hours
Camera 1080p Full HD, 10x Optical Zoom, Autofocus

Documents

Data Sheet
