The control panel is mounted on the arm holding the lamp for comfortable use. Thanks to the sensors in the lamp heads, it closes the relevant slice when it detects the surgeon's head, thanks to this feature, heat increase in the surgeon's head and shadow formation in the operation area are prevented.

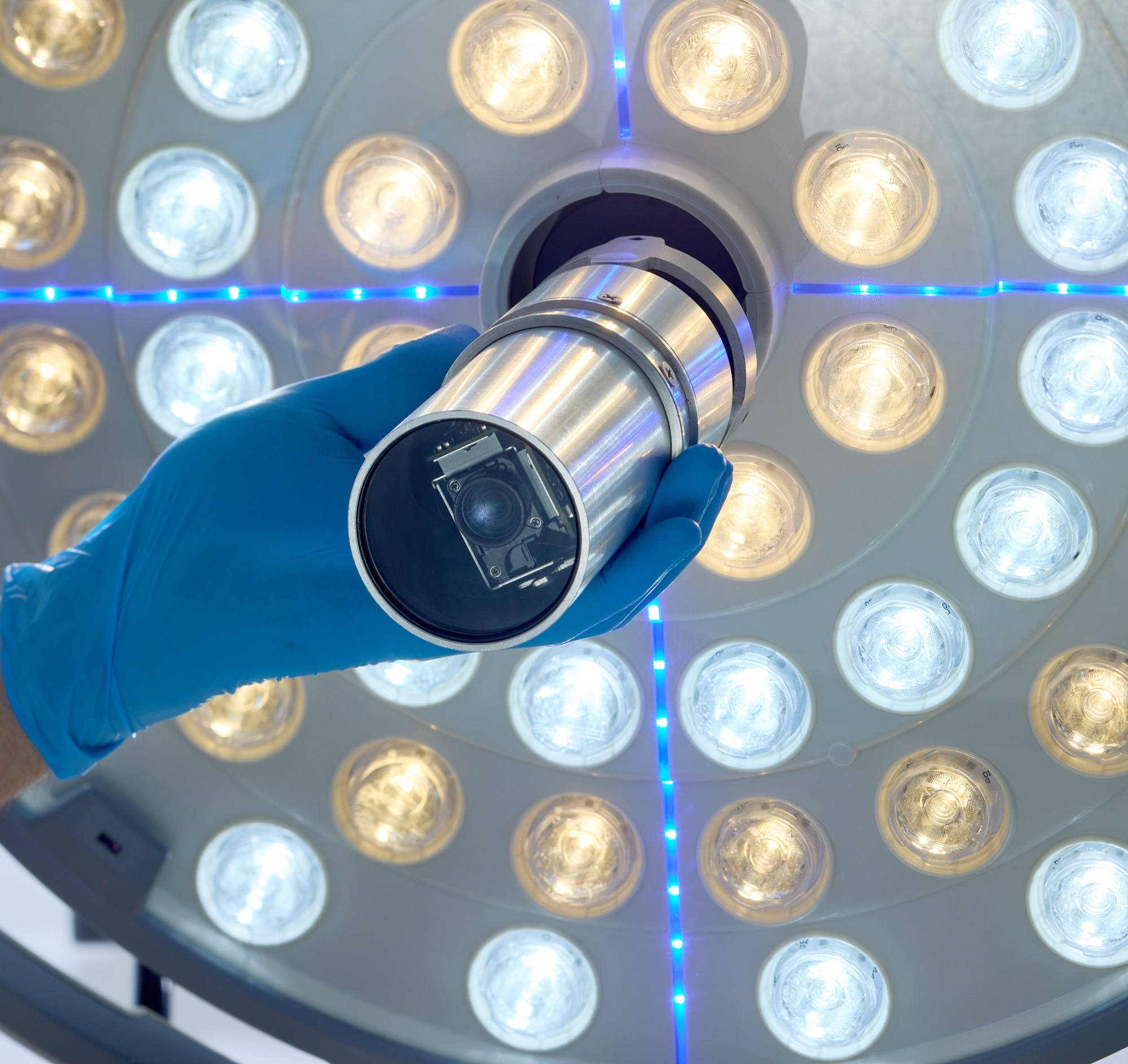

DL-62C has 2 heads with 160,000lux and 120,000lux light power. A SONY HD analog camera with 1/2.8 type CMOS sensor, 30x optical zoom and autofocus has been added to the lamp for users who want to take images during the operation. All functions of the lamp, including the camera, can be accessed from the control panel with touch LCD screen. There are 68 LEDs in the main head and 28 in the satellite head.
| Özellik Başlığı | Özellik Değeri |
|---|---|
| Max. Illumination power at 1 m (Main heading) | 160.000 lux |
| Max. Luminous power at 1 m (Satellite head) | 120.000 lux |
| Main head diameter | Ø650 mm |
| Satellite head diameter | Ø440 mm |
| Number of light heads | 2 |
| Control panel (for each light head) | 4.3'' LCD touch panel |
| Main head focus diameter | 120 - 300 mm |
| Satellite head focus diameter | 150 mm |
| Color temperature | 3500k - 5000k (7 steps) |
| Color discrimination index CRI RA | 96% |
| Light intensity adjustment | 1-100% |
| Parent topic Number of LED modules | 68 |
| Number of satellite header LED modules | 28 |
| LED lifetime | 60.000 hours |
| Protection against water and dust | IP 54 |
| Camera | 1080p Full HD Camera |
| Irradiation level / Illuminance level | Ee/Ec= 3.21 mW/m2.lx |
| Main title light depth | 120 cm |
| Satellite head light depth | 100 cm |
| Main topic total consumption | 85 W |
| Satellite head total consumption | 55 W |
| Endoscopy mode | Yes |
| Laminar flow harmony | Yes |

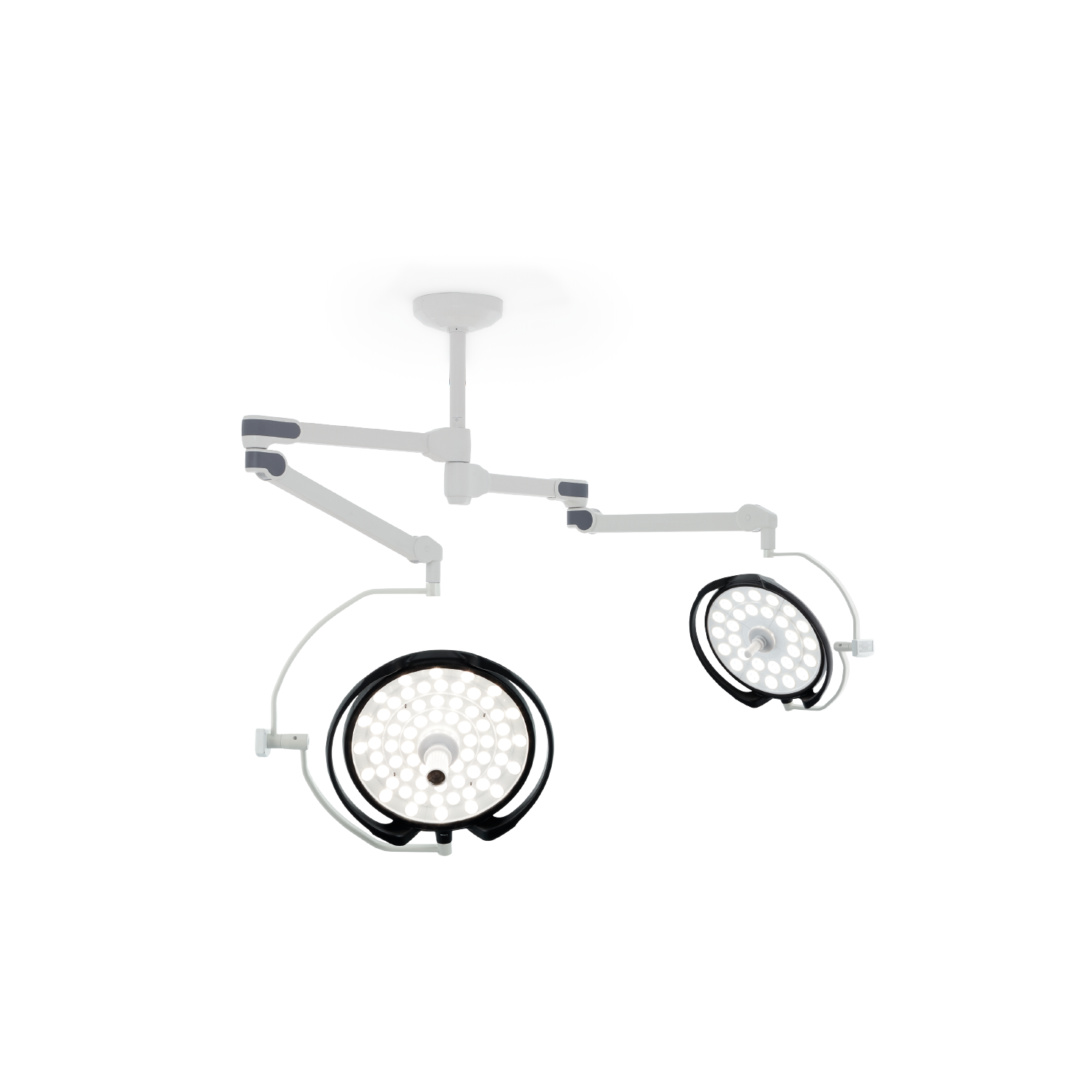

It has a two-arm design. There is one camera lamp head and one satellite lamp head
