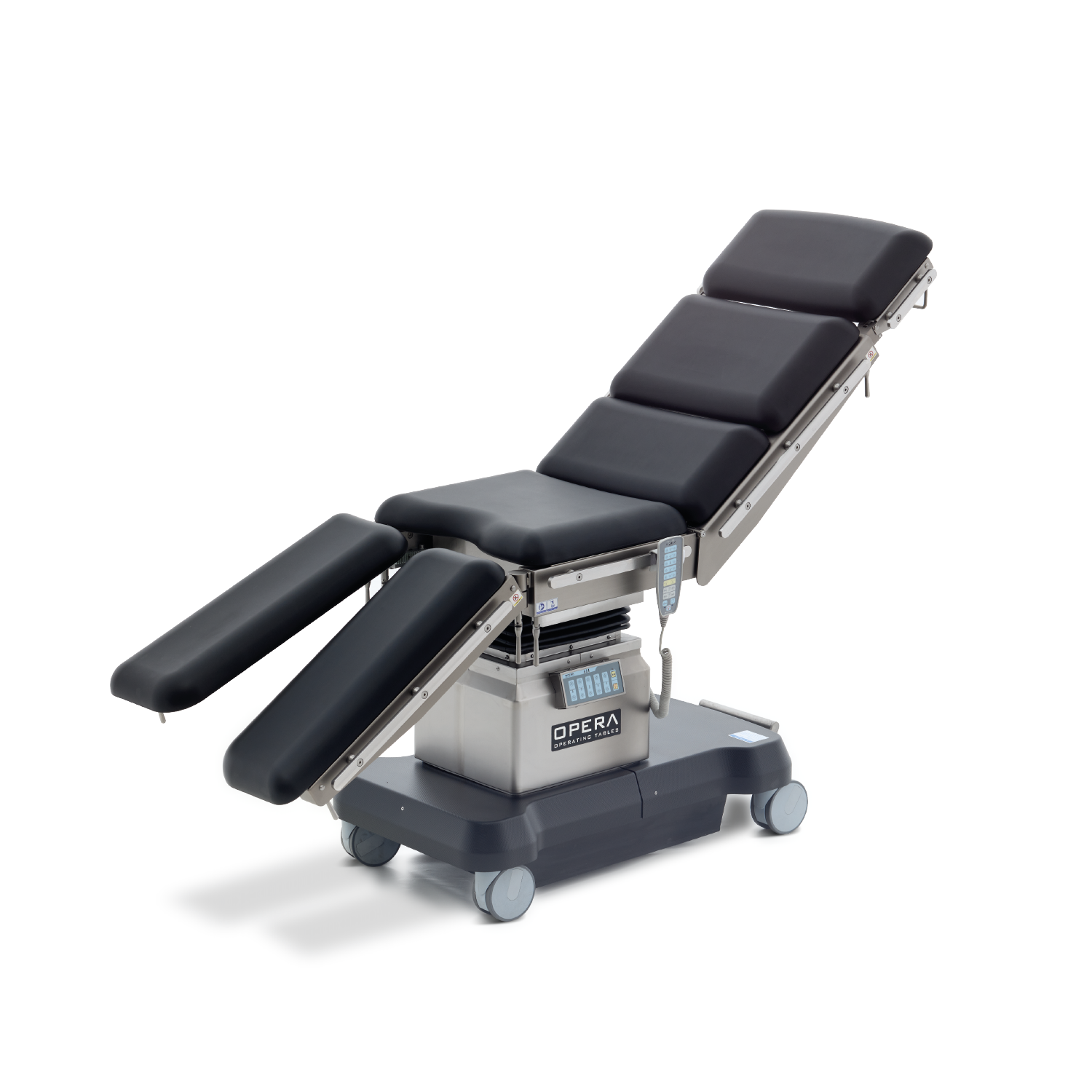

OP-2V Operating Table

OP-2V

10 cm visco mattress used on the operating table is the most distinguished feature of OP-2V with its patient comfort and ability to keep the patient's blood circulation stable.

Height adjustment, back position, trendelenburg, reverse trendelenburg, lateral tilt and horizontal sliding movements of OP-2V are electromechanical, head and leg movements are manual.

It can easily perform all electromechanical movements with the wired handset and the remote control on the body.

The table is battery powered, it allows to continue the operation safely when there is a power cut.

Its battery, which becomes fully charged in 2.5 hours, allows 30 full movements or 9 hours of use.

Thanks to 30 cm sliding feature of the table, it provides the opportunity to get x-ray images easily during the operation.

The operating table can be ordered with many different accessory options and can be used for all kinds of surgeries.

Sliding movement 300 mm
Lateral Tilt movement +20° / -20°
Backrest movement +90° / -40°
Trendelenburg +25°
Reverse Trendelenburg -25°
Foot section movement (up - down - sideways) +65° / -90° / +80°
Head section movement +30° / -80°
Flex / Reflex position +220° / 90°
Width / Length 610 x 2130 mm
Height (min) 830 mm (cushioned)
Height (max) 1230 mm (cushioned)
Mattress thickness 80 mm
Number of mattress pieces 2 pieces
Wheel diameter 125 mm
Number of wheels 4 pieces
Maximum patient weight 300 kg
Renal surgery position +250° / 12 cm
Table base structure I type
Mattress material Visco
Remote Control Wired hand and body control
Remote memory feature 5 different positions can be memorized
One-button position reset Yes
Patient warming system Optional
